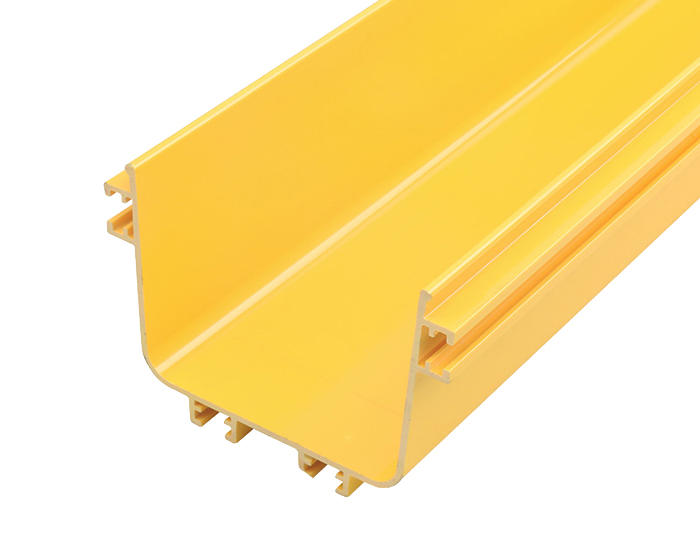

4x5 Straight Section Fiber Raceway System FSQ-101

Publisher: MJADOM

Author: Andy

RGP-FSQ-101  Fiber Raceway System also called Fiber Optic Raceway System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.

RGP-FSQ-101  Fiber Raceway System also called Fiber Optic Raceway System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.


Fiber Raceway system support system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.


Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.


Fiber Raceway system is available for variant fiber capacity, from exclusive big capacity 4" x 15" design to compact 4" x 5", to meet different customers' requirements. Straight plastic fiber routing trays are 2 meters in length and include the top cover. All components are environment friendly and high-class plastic, ROHS compliant, and UL94-V0 level of flammability.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.



Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.

Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

Configuration

Specification:

Straight Section Size4"x 5”4"x 10”4"x 15”
 HeightWidthHeightWidthHeightWidthHeight
5Inch (120mm)4Inch (100mm)10Inch (240mm)4Inch (100mm)15Inch (360mm)4Inch (100mm)

 Order Information:

Model No.Product Description
RGP-FSQ-101AFiber Raceway Straight Section 4"x 15" PVC 2M Length with Cover Yellow
RGP-FSQ-101BFiber Raceway Straight Section 4"x 10" PVC 2M Length with Cover Yellow
RGP-FSQ-101CFiber Raceway Straight Section 4"x 5" PVC 2M Length with Cover Yellow
