Fiber Raceway Ladder Rack Support Kit-Fiber Management Systems FSQ-108

Publisher: MJADOM

Author: Andy

RGP-FSQ-108  Fiber Raceway system also called Fiber Management System or Fiber Runner or Fiber Routing, which is designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers. It's consists of fiber raceways, ladder racks, bellows, various interfaces, elbows, and supports, etc. It's mainly used in the communication room to protect the communication fiber cables from damage.

RGP-FSQ-108  Fiber Raceway System also called Fiber Management System or Fiber Runner or Fiber Routing, which is designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.



Fiber Raceway system support system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.



Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.

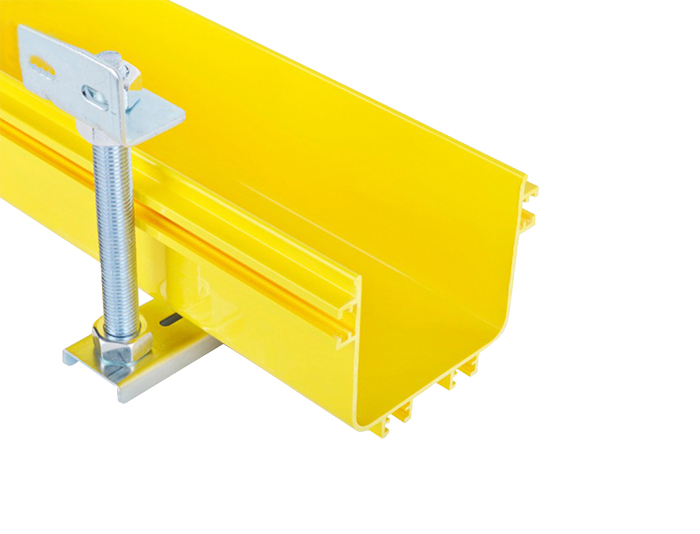

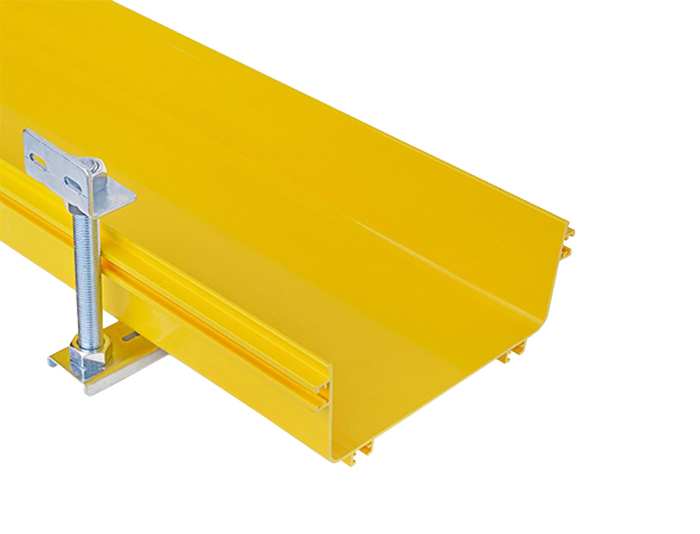

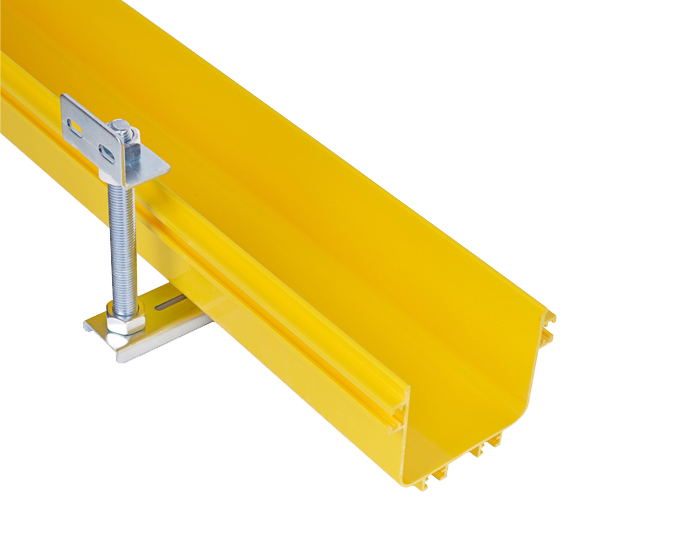

Fiber raceway system offers L-shape hanger kits (Ladder Rack Support Kit) that are used to support the 4" x 5" or 4" x 10" system by spanning two existing threaded rod drops. Can be installed from above or below.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.




Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.

Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

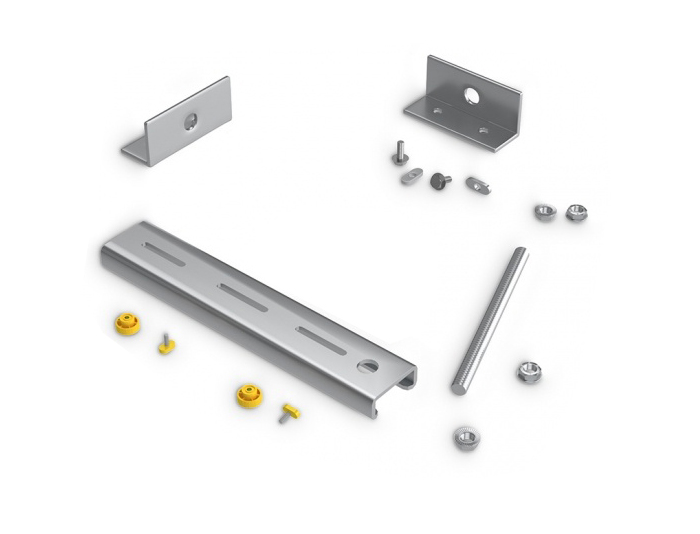

Configuration

Specification:

Ladder Rack Support Kit Size9" x 2”14" x 2”18" x 2”
 HeightLengthWidthLengthWidthLengthWidtht
9Inch (230mm)2Inch (90mm)14Inch (350mm)2Inch (50mm)18Inch (450mm)2Inch (51mm)


Order Information:

Model No.Product Description
RGP-FSQ-108AFiber Raceway Ladder Rack Support Kit 9” x 2”
RGP-FSQ-108BFiber Raceway Ladder Rack Support Kit 14” x 2”
RGP-FSQ-108CFiber Raceway Ladder Rack Support Kit 18” x 2”


Related Products

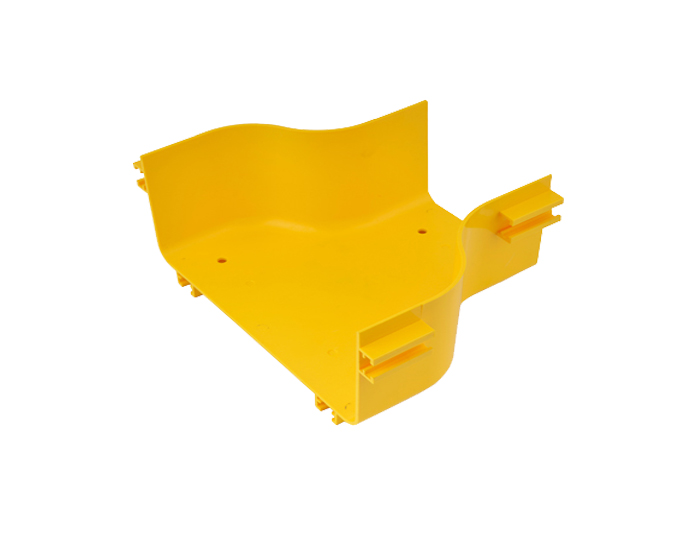

Fiber Raceway Horizontal Cross Tee Cable Tray PVC with Cover Yellow FSQ-102
