Fiber Raceway Horizontal Tees Fitting PVC with Cover Yellow FSQ-103

Publisher: MJADOM

Author: Andy

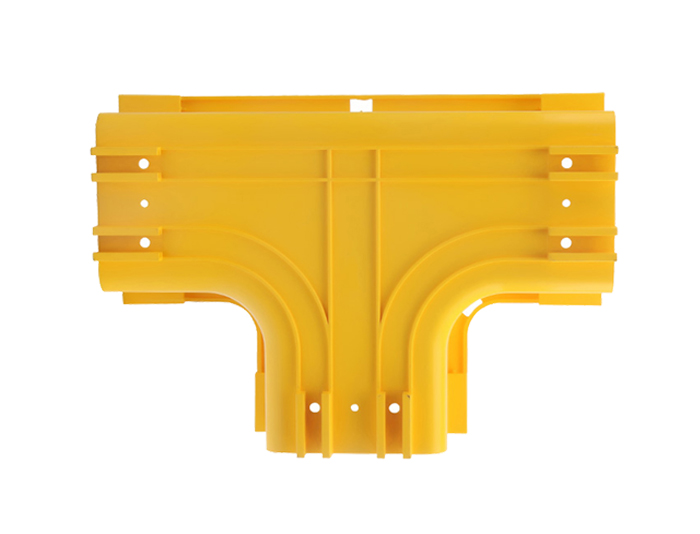

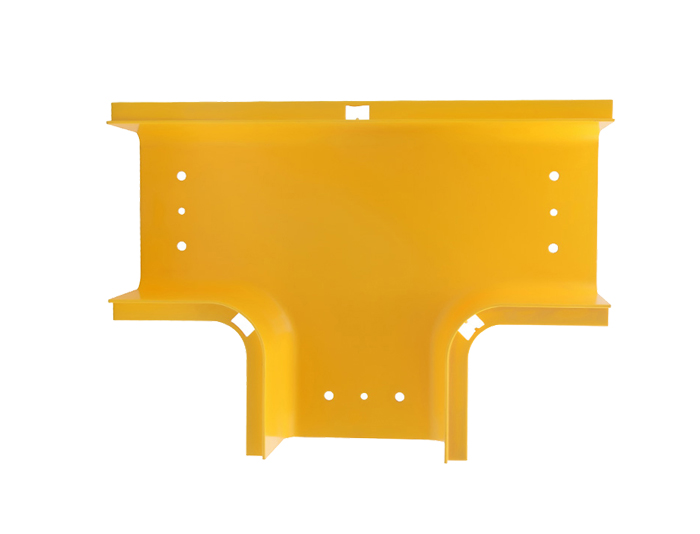

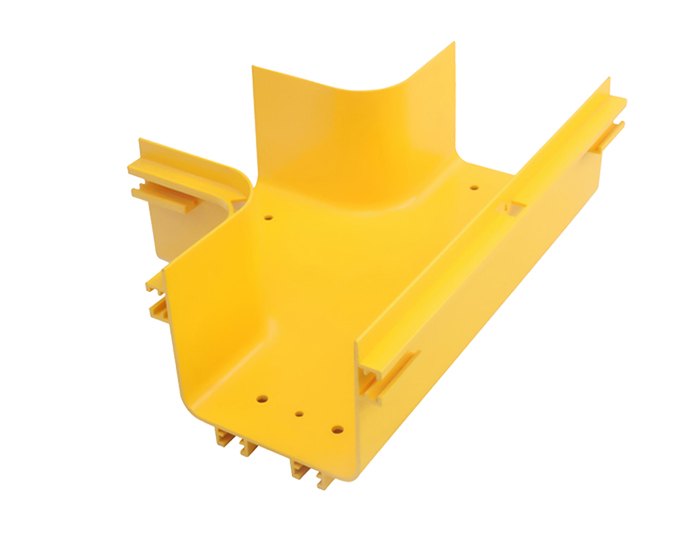

RGP-FSQ-103  Fiber Raceway System Horizontal Tee is made of PVC, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.

RGP-FSQ-103  Fiber Raceway System also called Fiber Optic Raceway System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.


Fiber Raceway system support the system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.


Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.

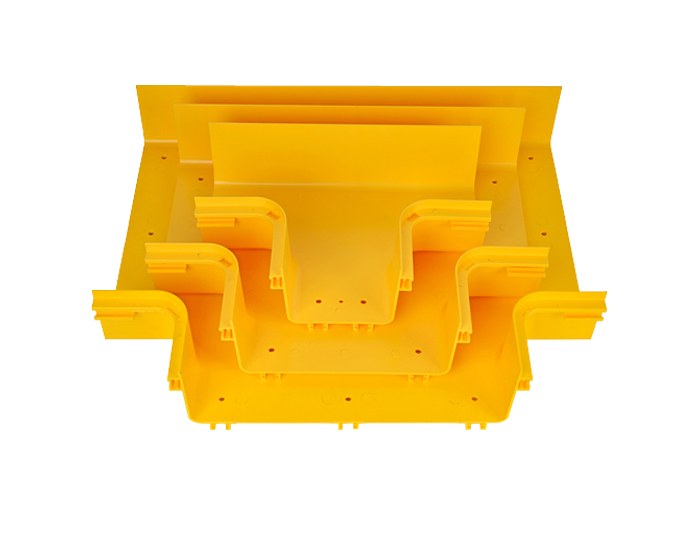

Fiber raceway system offers horizontal tee fittings that attach to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fittings to create a 90° horizontal branch from a straight horizontal run. All components are environment friendly and high-class plastic, ROHS compliant, and UL94-V0 level of flammability.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.


Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.



Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

Configuration

Specification:

Horizontal Tees Size2.36" x 2.36”4" x 5”4" x 10”4" x 15”
 HeightWidthHeightWidthHeightWidthHeightWidthHeight
2.36Inch (60mm)2.36Inch (60mm)5Inch (120mm)4Inch (100mm)10Inch (240mm)4Inch (100mm)15Inch (360mm)4Inch (100mm)

Order Information:

Model No.Product Description
RGP-FSQ-103AFiber Raceway Horizontal Tees 4" x 15” PVC with Cover Yellow
RGP-FSQ-103BFiber Raceway Horizontal Tees 4" x 10” PVC with Cover Yellow
RGP-FSQ-103CFiber Raceway Horizontal Tees 4" x 5” PVC with Cover Yellow
RGP-FSQ-103DFiber Raceway Horizontal Tees 2.36" x 2.36” PVC with Cover Yellow
