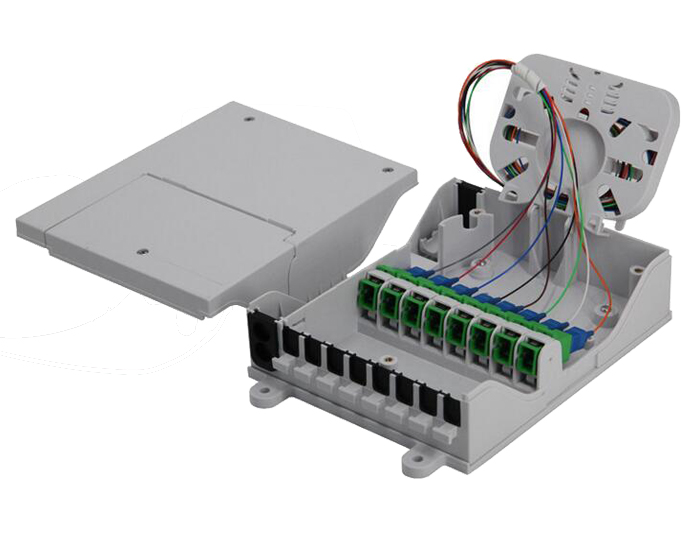

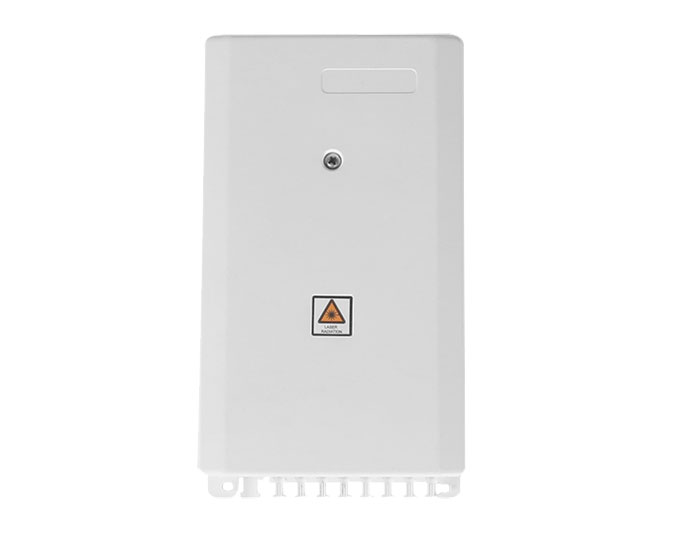

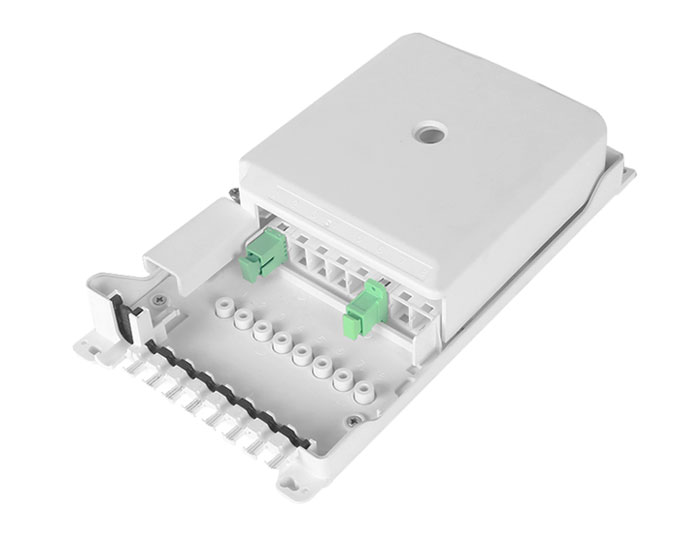

8 Core Fiber Access Terminal Box GZF-8B

Publisher: MJADOM

Author: Andy

RGP-GZF-08B 8 Core Fiber Access Terminal Box (ATB)  is made of PC/ABS alloy, which is used to connect drop cables and passive ONU devices. It is installed on indoor walls to provide fiber sockets. The box supports fusion splicing, mechanical splicing, and Fiber Adapters.

RGP-GZF-08B 8 Core FTTH Access Terminal Box is made of PC/ABS to splice and connect fibers in the FTTX network system, makes the delivery of next-generation services into multiple dwelling or multiple tenant buildings easier. Individual boxes support fusion splicing, mechanical splicing, and Fiber Adapters.

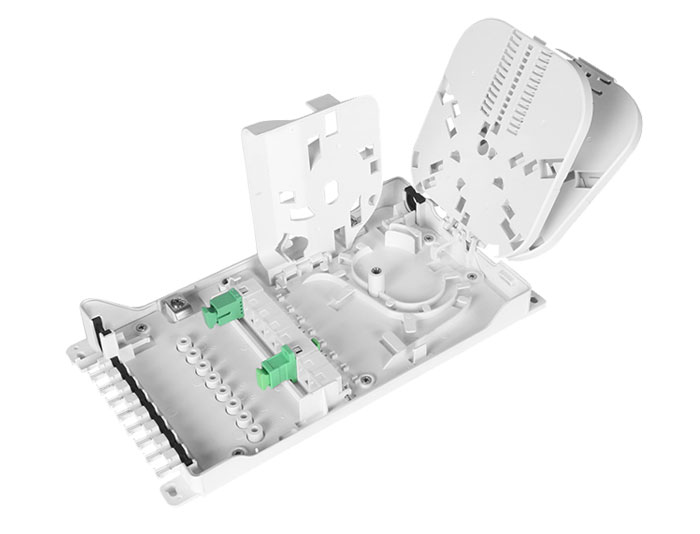

The box based on a modular splice cassette system, the technology consists of a splice cassette, a termination cassette and a cable guide element, the IP level is IP55.


MJADOM provides a full range of the Fiber Access Terminal Box with SC, LC Fiber Optic Adapter, high-performance fiber access terminal box to support fusion splicing, mechanical splicing, and Fiber Adapters. Get Quote Now !!


Features :

Total enclosed structure, Self-clip design, easy to install.

Accommodates up to 16 termination/splice connections - Up to 8 SC simplex or 8 LC duplex adapters.

Material: The box made of high impact plastic PC+ABS(Halogen free), Waterproof, Dust-proof, Anti-aging, Protection level up to IP55, RoHS compliant; conforms to UL 94 V-0.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one box.

The swing distribution panel, feeder cable can be placed by expression port, easy for maintenance and installation.

Features pass-through functionality for uncut cables

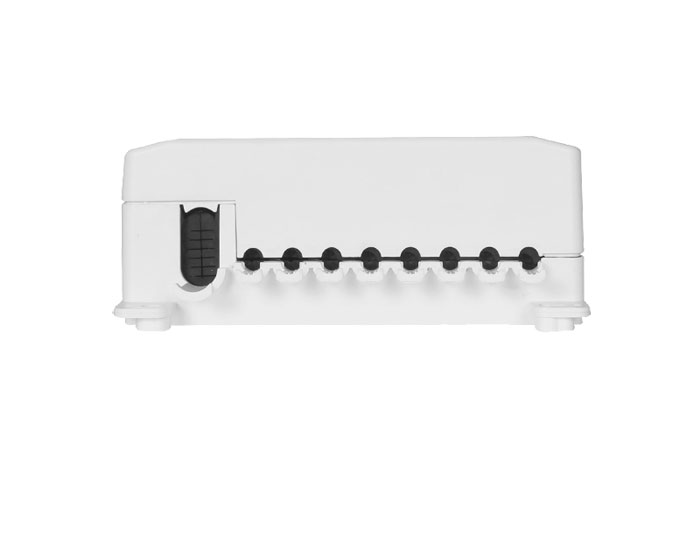

2 inlet ports, 8 outlet ports, max capacity 8 fibers, Rubber sealing circle for waterproof

Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install

Suitable for wall and pole mounting.



Performance :

Operation Temperature : -40℃ ~ +85℃.

Storage Temperature : -40℃ ~ +85℃.

Atmospheric pressure : 70kPa - 106 kPa.

Cable Type : Drop Cable, pigtail, outdoor cable (8mm - 12mm ).


Application:

Wall and pole mountable.

Widely used in FTTH access network.

Telecommunication Network.

CATV Networks.

Data communications Networks.

Local area network.



Complied Standards:

Meet national standard Q / CT 2353-2011.


Configuration

Order Information:

Model No.DimensionMax CapacityInlet Cable DimensionOutlet Cable Dimension(mm)
 RGP-GZF-08B 235mmx126mmx52mm8 SC simplex or 8 LC duplex adapters 10mm Ø5



Related Products

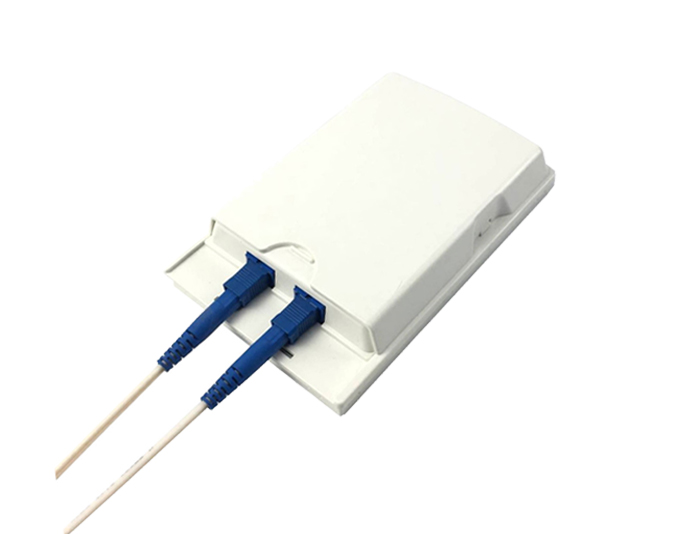

2 Core FTTH Wall Mount Fiber Optic Outlet GZF-B2
2 Core FTTH Wall Mount Fiber Optic Outlet GZF-B2

​RGP-GZF-B2 2 Core FTTH Wall Mount Fiber Optic Outlet is designed for use in residential and business applications for the termination of up to 2 fibers, used to connect the drop cable and the passive optical equipment of the ONU.

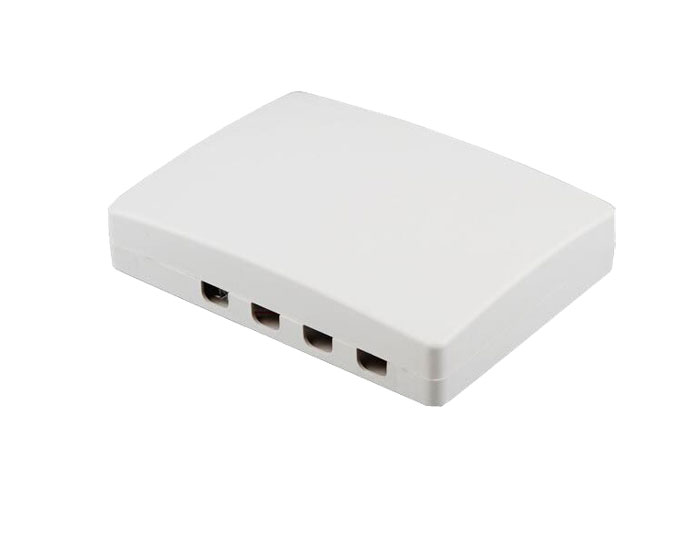

2 Core Fiber Access Terminal Box (ATB) GZF-B1
2 Core Fiber Access Terminal Box (ATB) GZF-B1

RGP-GZF-B1 2 Core The Access Terminal Box is designed for use in residential and business applications for the termination of up to 2 fibers, 4 fibers, used to connect the drop cable and the passive optical equipment of the ONU. It can hold 1 SC Duplex Adapters or LC Quad Adapters.

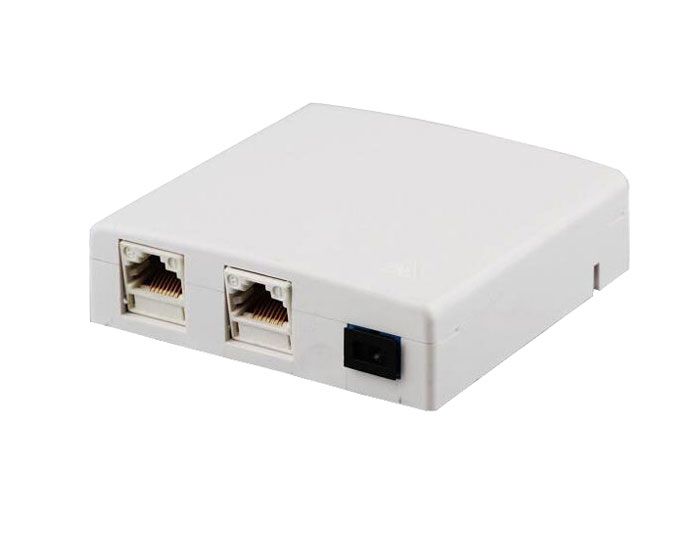

3 Port RJ45+SC Adapter Fiber Outlet Box GZF-A3
