MPO/MTP Pre-terminated Plug-N-Play Fiber Cassettes Modules TSB-307TM

Publisher: MJADOM

Author: Andy

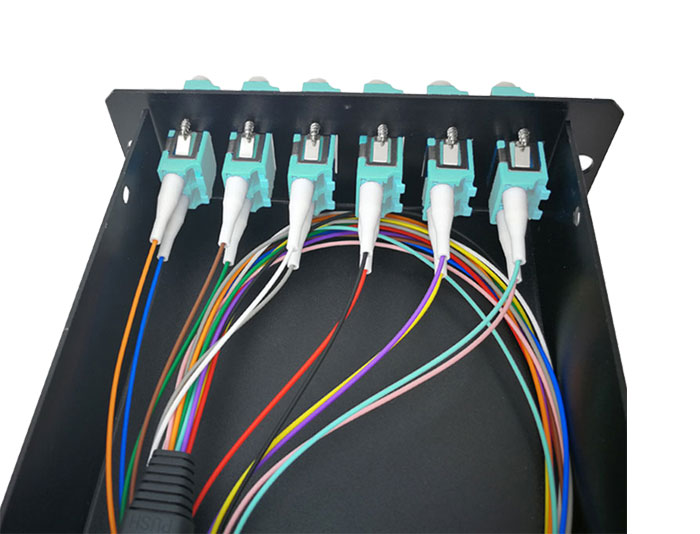

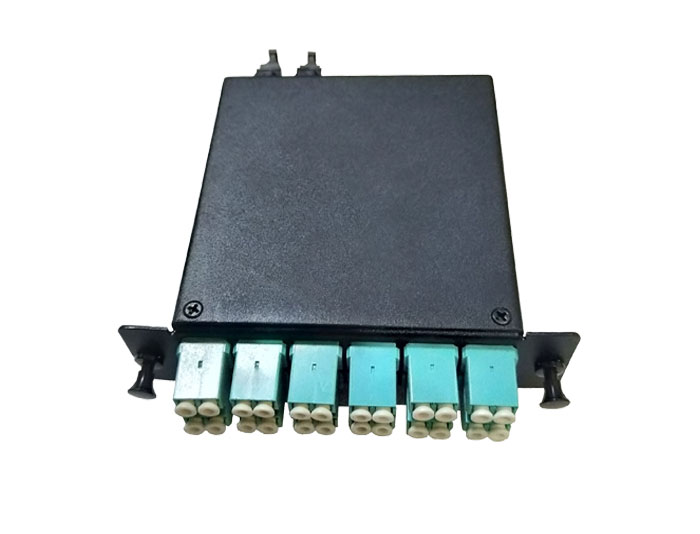

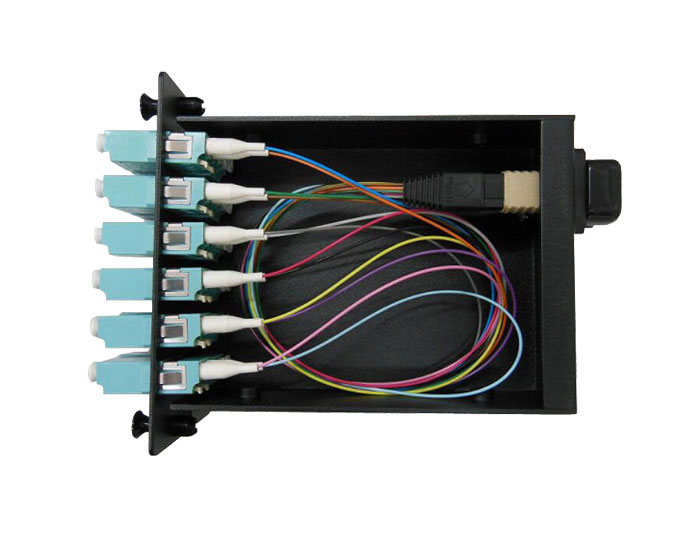

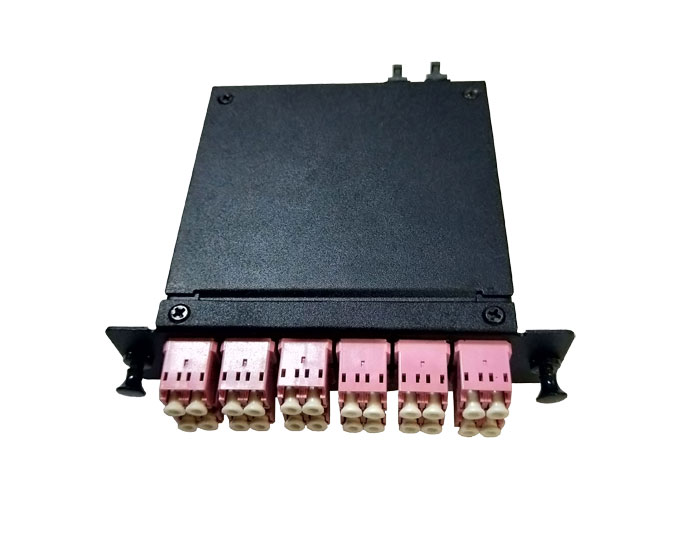

RGP-TSB-307TM MTP/MPO Pre-terminated Plug-N-Play Fiber Cassettes Modules also called Fiber Optic Cassette or MPO Cassettes or MPO to LC Cassettes provide a high-density connection from LC or SC fiber ports to MTP/MPO backbone trunks. These MTP/MPO fiber cassettes are ideal for accompanying High-Density and MPO fiber distribution patch panel enclosures. Featured options include 12 fiber ports or 24 fiber ports in single-mode or multimode selections per MPO/MTP connection. MJADOM offers OM3 12-fiber MPO Cassettes, optimized, low loss, LC duplex adapter cassette, (color and split sleeve dictated by fiber type), standard method A polarity.




RGP-TSB-307TM MTP/MPO Pre-terminated Plug-N-Play Fiber Cassettes also called Fiber Optic Cassette or MPO Cassettes or MPO to LC Cassettes provide a high-density connection from LC or SC fiber ports to MTP/MPO backbone trunks. These MTP/MPO fiber cassettes are ideal for accompanying High-Density and MPO fiber distribution patch panel enclosures. Featured options include 12 fiber ports or 24 fiber ports in single-mode or multimode selections per MPO/MTP connection.


MJADOM offers OM3 12-fiber MPO Cassettes, optimized, low loss, LC duplex adapter cassette, (color and split sleeve dictated by fiber type), standard method A polarity.


Buy High-Performance MPO-MPO Patch Cord, MPO-LC Breakout/Fanout Cable, MPO Fiber Optic Cassettes and MPO Patch Panel From reliable fiber optic supplier-MJADOM.COM. It's the ideal product for connecting multi-fiber MPO trunk cables and splitting.


Features:

The Panel and Modules are made of cold-rolled steel sheets.

Plug-N-Play Fiber Cassette, Factory pre-terminated module, no need fiber splicing and cable wiring which saves labor cost.

Compatible with High-Density Rack-Mount TSB-307TG/TJ Series Fiber Patch Panels.

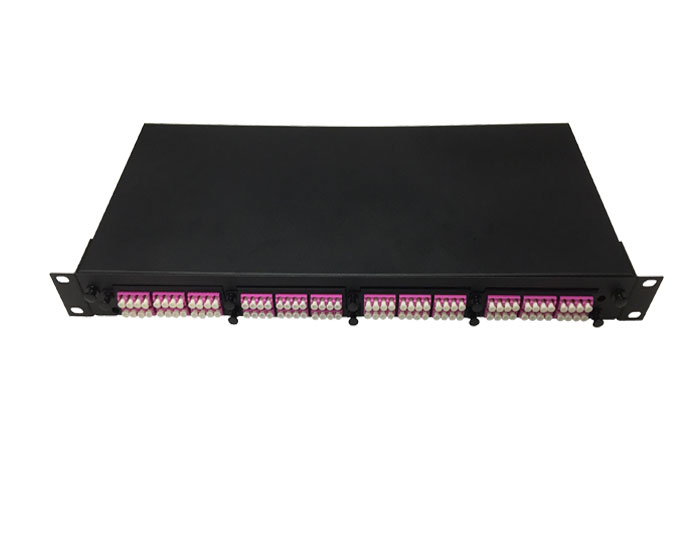

Up to 4 Fiber Cassettes per 1U Fiber Patch Panel.

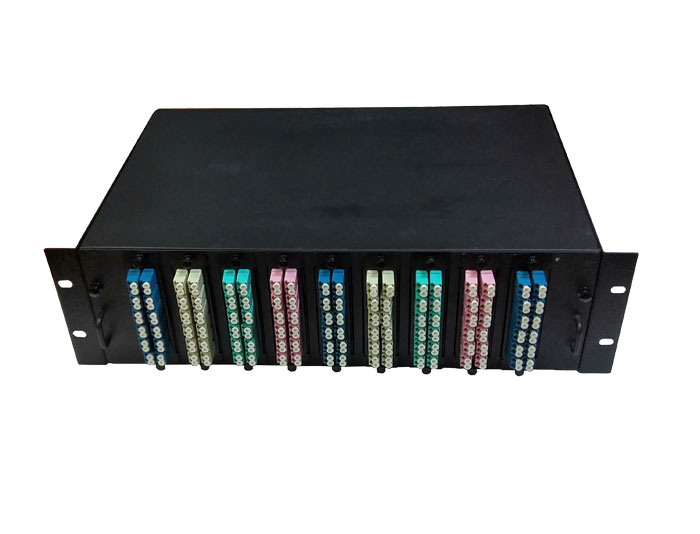

Flexibility to Mix Adapter Plates with Cassettes in Patch Panel.

Available with LC, SC, and MTP/MPO Adapters.

Easily Accessible MTP/MPO Ports for Connection to Trunk Cable.

Reliability 100% tested - the combination of high-quality components and manufacturing quality control guarantees product to the highest standards.


Application:

Telecommunication Networks.

Local Area Networks (LANs).

Data Processing Networks.

Premise Installations.

Wide Area Networks (WANs).

CATV, Metro.

Industrial, Medical & Military.


Standard:

TIA/EIA 604-5, IEC 61754, Telcordia GR-1435-CORE, GR-326-CORE, RoHS

Low smoke (IEC 61304), Zero Halogen(IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2).


Configuration

Technical Specification:

SpecificationRGP-TSB-307TKRGP-TSB-307TLRGP-TSB-307TMRGP-TSB-307TN
Total Fiber Count12242424
Front Adapter TypeLC/UPC SM DuplexLC/UPC MM DuplexLC OM3 DuplexLC OM4 Duplex
Front Port Count6666
Rear Adapter TypeMTP/MPOMTP/MPOMTP/MPOMTP/MPO
Rear Port Count1222
Return Loss (MTP/MPO)> 25 dB> 25 dB> 25 dB> 25 dB
Insertion Loss (MTP/MPO)Typical 0.15dB; Max 0.70dBTypical 0.15dB; Max 0.70dBTypical 0.15dB; Max 0.70dBTypical 0.15dB; Max 0.70dB
Return Loss (LC)> 50 dB> 50 dB> 50 dB> 50 dB
Insertion Loss (LC)Typical 0.15dB; Max 0.30dBTypical 0.15dB; Max 0.30dBTypical 0.15dB; Max 0.30dBTypical 0.15dB; Max 0.30dB
ColorBlack ColorBlack ColorBlack ColorBlack Color
MaterialCold-rolled SteelCold-rolled SteelCold-rolled SteelCold-rolled Steel
Operating Temperation-40℃ ~ +80℃
