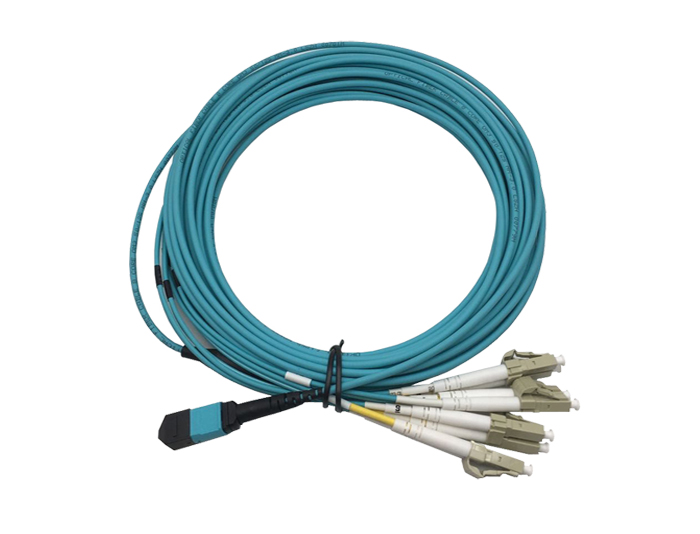

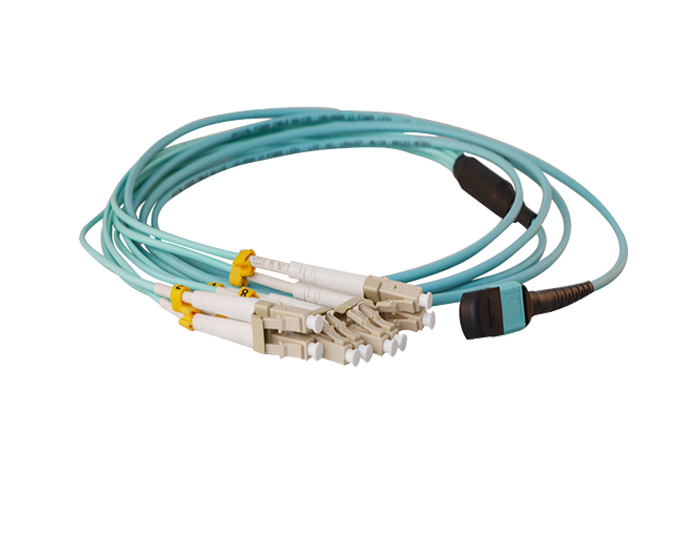

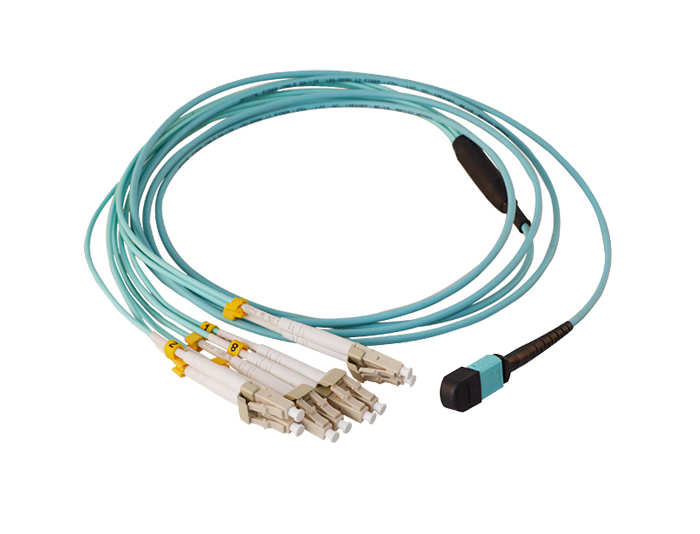

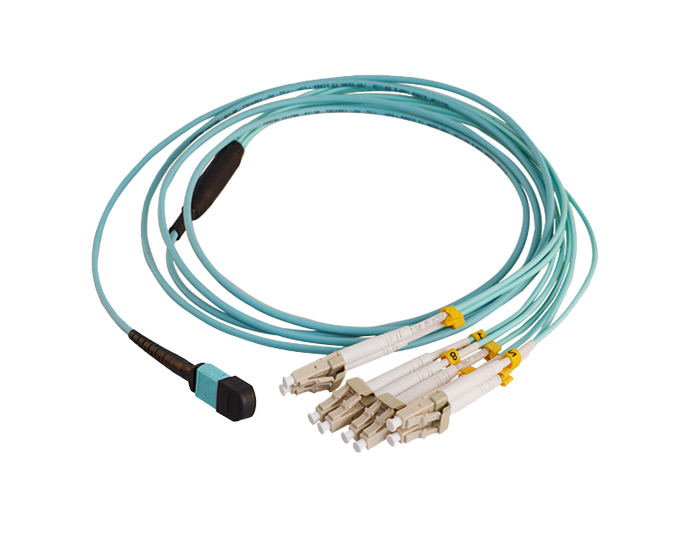

MPO to LC, 8 Fibers OM3 Multimode Breakout Cable, Low Smoke Zero Halogen (LSZH) Rated, TSB-307D

Publisher: MJADOM

Author: Andy

RGP-TSB-307D MPO to LC, 8 Fibers, OM3 Multimode Breakout Cable also called MPO LC Breakout Cable or MPO to LC Patch Cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers that need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection, and high-density data center applications.

RGP-TSB-307D MPO to LC, 8 Fibers, OM3 Multimode Breakout Cable also called MPO LC Breakout Cable or MPO to LC Patch Cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers that need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection, and high-density data center applications.


MTP/MPO cables are composed of MTP/MPO connectors and fiber optic cables, New MPO/MTP connector offers up to 24 times the density of standard connectors, providing significant space and cost savings. MPO/MTP Connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating.


Buy High-Performance MPO-MPO Patch Cord, OM3/OM4/OM5 Multimode Fiber for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.


Features:

Wavelength: 1310 nm-1550 nm.

Suitable for MPO cassette application.

Capacity is available in 4, 8, 12, and 24.

Yellow for SM Super Low loss; Beige for MM.

Aqua for OM3 Fiber; Violet for OM4 Fiber.

LSZH Jacket.



The ferrule is available for SM Standard, SM Super Low Loss, MM Standard, and MM Low Loss.

Boots are available for Ribbon Cable, Ribbon Fiber, and Round boot.

Factory-terminated provides consistent quality, high performance, and reduces installation time.

100% tested for low insertion loss performance and high back reflection.


Application:

Telecommunication Networks.

Local Area Networks (LANs).

Data Processing Networks.

Premise Installations.

Wide Area Networks (WANs).

CATV, Metro.

Industrial, Medical & Military.


Standard:

TIA/EIA 604-5, IEC 61754, Telcordia GR-1435-CORE, GR-326-CORE, RoHS

Low smoke (IEC 61304), Zero Halogen(IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2).


Configuration

 Technical Specification:

SpecificationSinglemodeMultimode
MPOTypicalMax.TypicalMax.
Insertion Loss0.2dB0.7dB0.15dB0.5dB
Return Loss60 dB (8° Polish)25 dB (Flat Polish)
Durability<0.30dB change 500 matings<0.20dB change 1000 matings
Ferrule type available4, 8, 12, 244, 8, 12, 24
Operating Temperature-40ºC to +75ºC
Storage Temperature-40ºC to +85ºC




Related Products

MPO to MPO, OM4 Multimode Fiber Trunk Cable, Low Smoke Zero Halogen (LSZH) Rated TSB-307C
MPO to MPO, OM4 Multimode Fiber Trunk Cable, Low Smoke Zero Halogen (LSZH) Rated TSB-307C

RGP-TSB-307C MPO Patch Cord, OM4 Multimode, LSZH, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers that need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection.

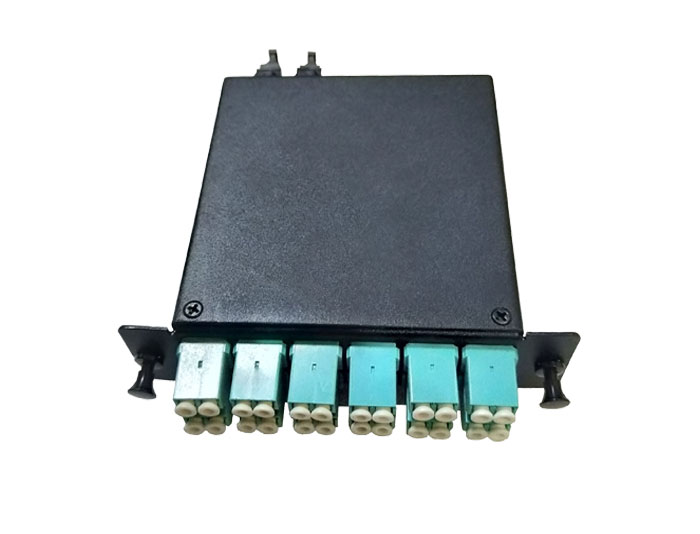

MPO to LC Pre-terminated Plug-N-Play Fiber Cassettes TSB-307TN
MPO to LC Pre-terminated Plug-N-Play Fiber Cassettes TSB-307TN

RGP-TSB-307TN MPO to LC Pre-terminated Plug-N-Play Fiber Cassettes provides a high-density connection from LC or SC fiber ports to MTP/MPO backbone trunks. These MTP/MPO fiber cassettes are ideal for accompanying High-Density and MPO fiber distribution patch panel enclosures.

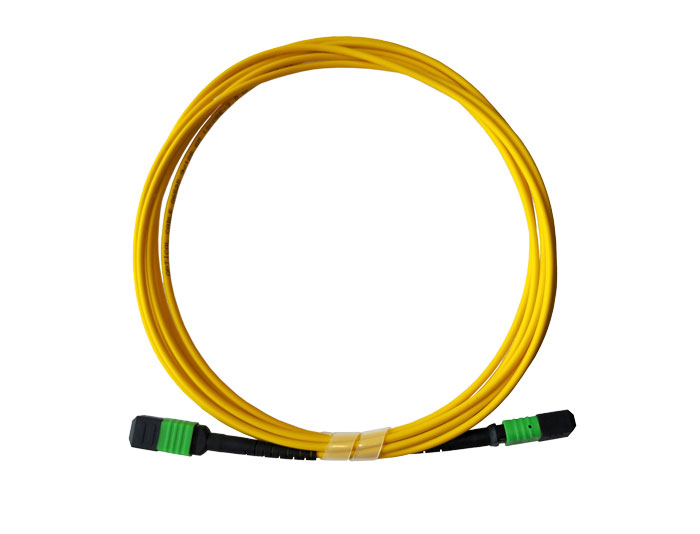

MPO to MPO Fiber Optic Trunk Cable, SM, Low Smoke Zero Halogen (LSZH) Rated, TSB-307A
MPO to MPO Fiber Optic Trunk Cable, SM, Low Smoke Zero Halogen (LSZH) Rated, TSB-307A

RGP-TSB-307A MPO to MPO F Trunk Cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers that need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection, and high-density data center applications.

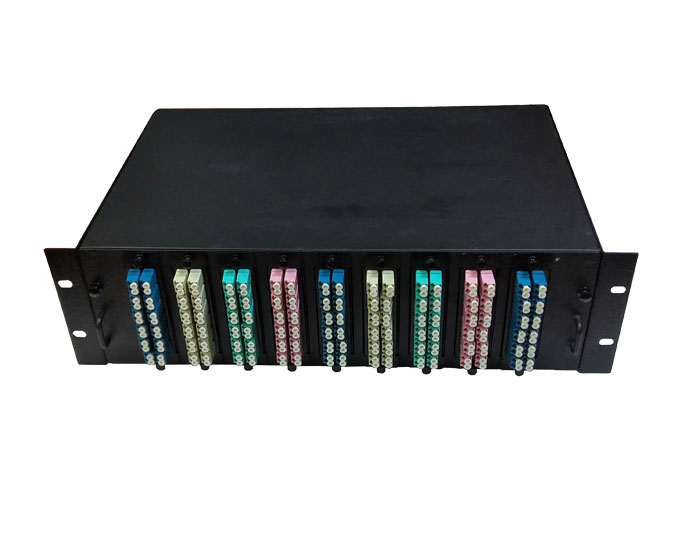

MPO to LC High-Density 3U Fiber Optic Patch Panels TSB-307TJ
