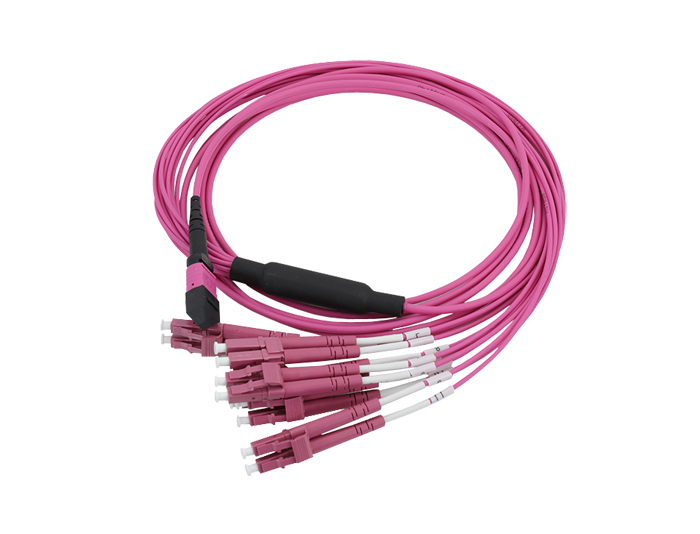

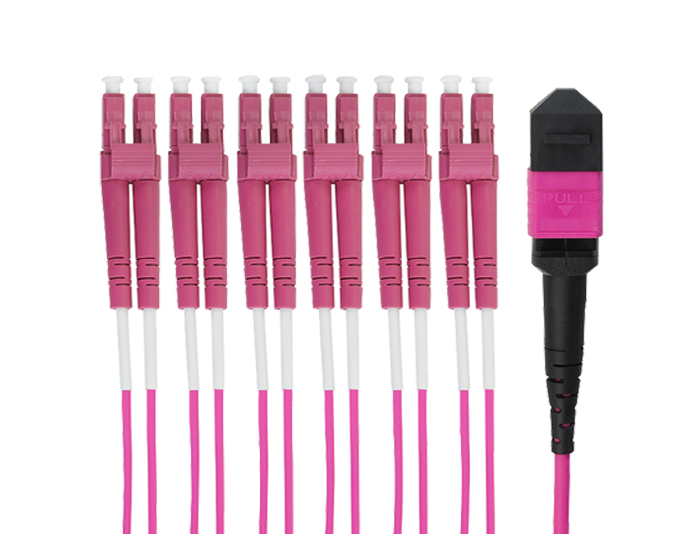

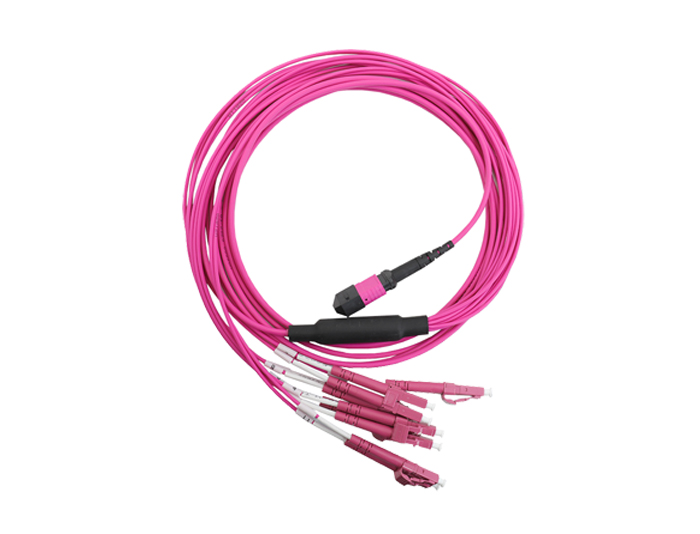

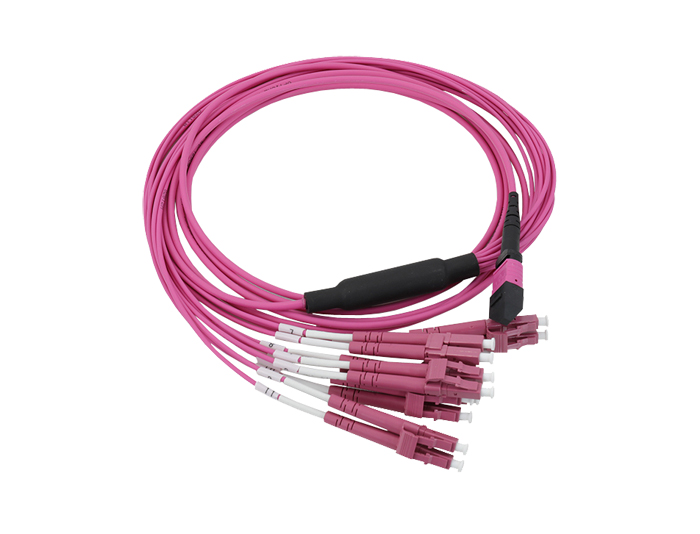

MPO to LC, 8 Fibers OM4 Multimode Breakout Cable, Low Smoke Zero Halogen (LSZH) Rated, TSB-307E

Publisher: MJADOM

Author: Andy

RGP-TSB-307E MPO to LC, 8 Fibers, OM4 Multimode Breakout Cable also called MPO LC Breakout Cable or MPO to LC Patch Cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers that need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection, and high-density data center applications.

RGP-TSB-307E MPO to LC, 8 Fibers, OM4 Multimode Breakout Cable also called MPO LC Breakout Cable or MPO to LC Patch Cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers that need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection, and high-density data center applications.


MJADOM provides MPO-LC, 8 Fibers, Multimode fiber breakout cables also provides MPO Fiber Optic Cables, MPO-LC Breakout/Fanout Cables, MPO/MTP Cassettes, Get Quote Now!


Buy High-Performance MPO-MPO Patch Cord, OM3/OM4/OM5 Multimode Fiber for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.


Features:

Wavelength: 1310 nm-1550 nm.

Suitable for MPO cassette application.

Capacity is available in 4, 8, 12, and 24.

Yellow for SM Super Low loss; Beige for MM.

Aqua for OM3 Fiber; Violet for OM4 Fiber.

LSZH Jacket.



The ferrule is available for SM Standard, SM Super Low Loss, MM Standard, and MM Low Loss.

Boots are available for Ribbon Cable, Ribbon Fiber, and Round boot.

Factory-terminated provides consistent quality, high performance, and reduces installation time.

100% tested for low insertion loss performance and high back reflection.


Application:

Telecommunication Networks.

Local Area Networks (LANs).

Data Processing Networks.

Premise Installations.

Wide Area Networks (WANs).

CATV, Metro.

Industrial, Medical & Military.


Standard:

TIA/EIA 604-5, IEC 61754, Telcordia GR-1435-CORE, GR-326-CORE, RoHS

Low smoke (IEC 61304), Zero Halogen(IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2).



Configuration

 Technical Specification:

SpecificationSinglemodeMultimode
MPOTypicalMax.TypicalMax.
Insertion Loss0.2dB0.7dB0.15dB0.5dB
Return Loss60 dB (8° Polish)25 dB (Flat Polish)
Durability<0.30dB change 500 matings<0.20dB change 1000 matings
Ferrule type available4, 8, 12, 244, 8, 12, 24
Operating Temperature-40ºC to +75ºC
Storage Temperature-40ºC to +85ºC
