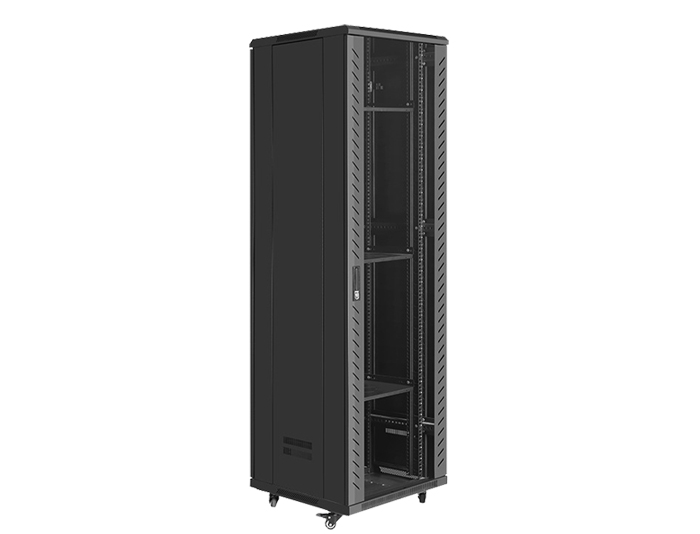

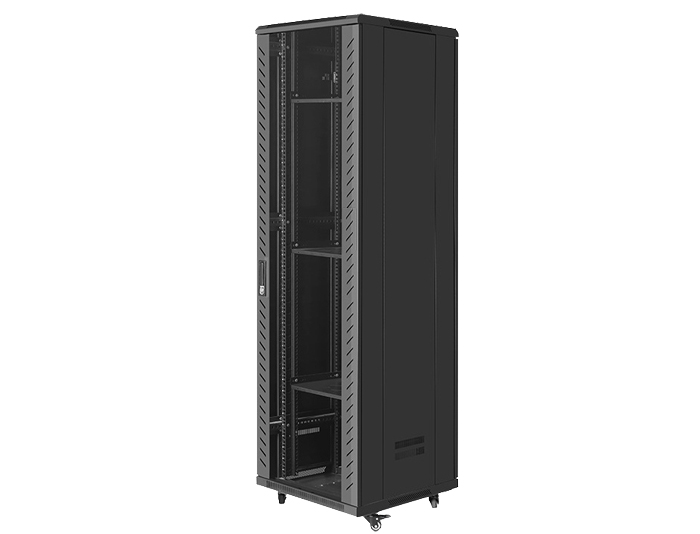

42U Server Rack / 42U Network Cabinet with Glass Door, TSF-207B

Publisher: MJADOM

Author: Andy

42U Server Rack Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, server rooms, data centers, and other areas with limited floor space where you need equipment to be secure and organized.

Description:

42U Server Rack is designed to meet various storage demands and guarantee maximum data security and protection. Server Rack Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, server rooms, data centers, and other areas with limited floor space where you need equipment to be secure and organized. Constructed from heavy-duty steel with a durable black powder-coated finish.



Server Rack 42U adopts ventilated or removable panel design that allows generous airflow to keep equipment operating safely. Toughened glass door or Perforated door with turning angle over 180 degrees, ensures protection, ventilation, and reliable operation of the equipment, which allows air to flow freely through the cabinet to keep equipment cool. Convenient top ports and an open bottom allow easy cable routing through the cabinet.



MJADOM has a powerful OEM service can undertake customized service according to your requirements.


Features:

Server Rack Home adopts 42U Exquisite design with precise craftsmanship.

Powder-coated finish with pretreatment process meeting all industry standards.

42U Server Rack Floor-standing easy installation.

Optional adjustable feet and heavy-duty castors.

Server Rack Shelf adopts removable side panels, easy to install and maintain.

Toughened glass door or Perforated door with turning angle over 180 degrees.

Lockable and adjustable cable entries on the top cover and bottom panel ensure dust protection for the installed equipment

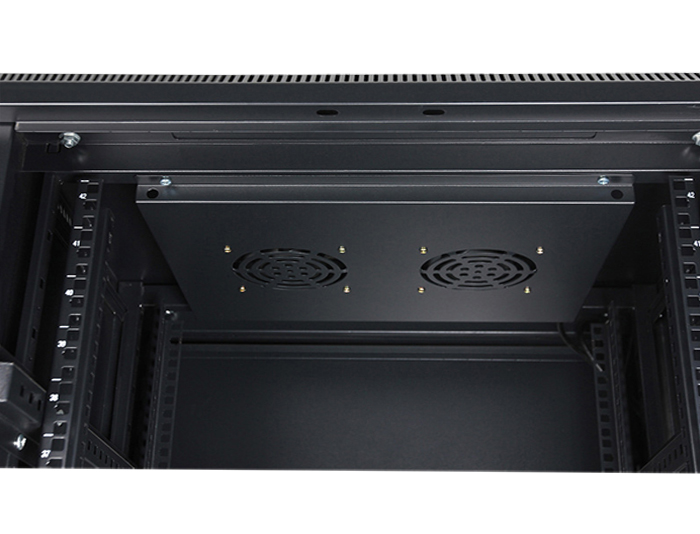

Provision to mount server rack cooling fans on the top panel. 4xFans (server rack fan), Ø 4.7".

Intended for installation of 19"standard equipment.

3-point server rack lock with handle securely to help prevent damage, tampering, or theft.

Grounding and Bonding Options. 100% assured compatibility with all equipment conforming to DIN 41494.

Various supplementary server rack accessories with common use are available upon request–castors, shelves, power distribution units, etc.

Server Rack Mount complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 part 1, DIN41494 part 7, ETSI standards.


Product Details:

Rack TypeServer Rack CabinetStyleFloor-Standing
ColorBlack / GreyDimensions (HxWxD)42U; 23.6"x23.6"x79.9" (600x600x2030mm)
Factory Preset Rack Depth23.6'' (600 mm)Weight Capacity - Stationary3307lbs (1500 kg)
Protection Level IP20Server Rack Size37U / 42U / 45U / 47Uor Customized

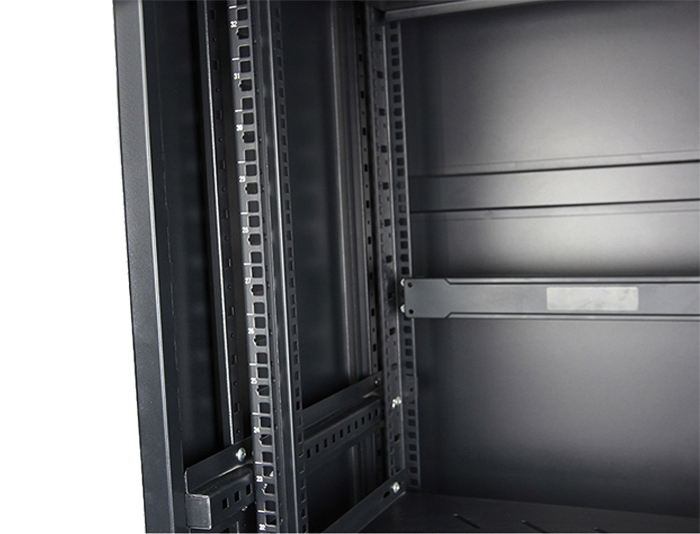

Mounting RailsSquare-PunchedGrounding WireFront and back door, side panels, top panel.
InstallationStandard EIA 19" Rack RailsDevice CompatibilityRouters; Modems; Network Switch; UPS; Server.
 MaterialMounting profile: 2.0mm SPCC cold rolled steel construction; Mounting Angles: 1.5mm SPCC cold rolled steel construction; Others: 1.2mm SPCC cold rolled steel construction.  CompliantANSI/EIA RS-310-D, IEC297-2, DIN41494 part 1, DIN41494 part 7, ETSI standards


Application:

Data application / IT Equipment.

Perfect for Private / enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-207A142U Server Rack / 42U Network Cabinet With Glass Door, 600x600x2030mm
RGP-TSF-207A242U Server Rack / 42U Network Cabinet With Perforated Door, 600x600x2030mm
RGP-TSF-207B142U Server Rack / 42U Network Cabinet With Glass Door, 600x800x2030mm
RGP-TSF-20B242U Server Rack / 42U Network Cabinet With Perforated Door, 600x800x2030mm
