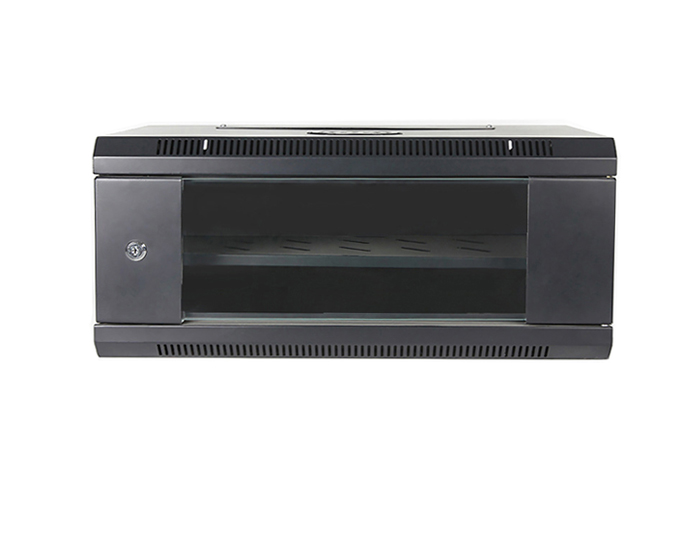

6U Wall Mount Server Rack, Black / Grey, TSF-206B

Publisher: MJADOM

Author: Andy

Wall Mount Server Rack is ideal for areas that don't have enough equipment to require a full-size cabinet and protects computers, routers, modems, and other devices in a space-saving.

Description:

Wall Mount Server Rack is ideal for areas that don't have enough equipment to require a full-size cabinet and protects computers, routers, modems, and other devices in a space-saving. Server Rack Wall Mount or Small Server Rack adopts ventilated or removable panel design that allows generous airflow to keep equipment operating safely.

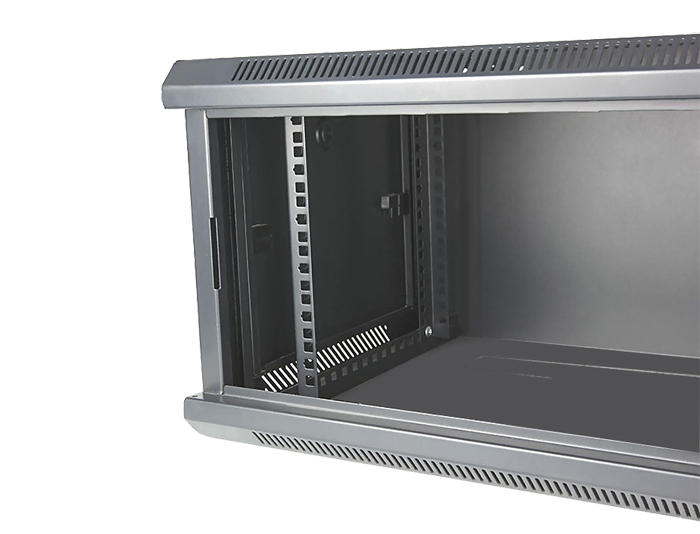

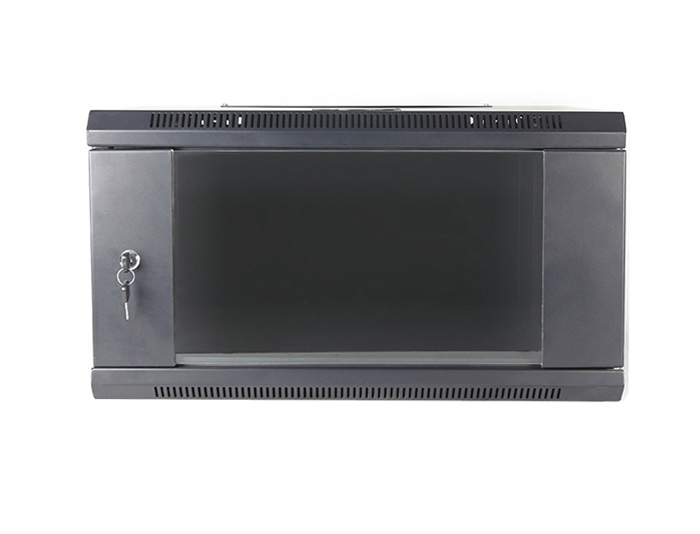

Configuration for standard racks is welded frame integrated with side panels and vented top cover with fan mounting provision, while the front glass with lock & key provides the visibility & security, rear side of the Rack is provided with the wall mounting slots for your equipment. Server Rack Small is available from 4U to 15U Variants with 400mm, 450mm, 500mm, and 600mm deep configuration.



MJADOM has a powerful OEM service can undertake customized service according to your requirements.


Features:

Mini Server Rack complies with DIN 41494 OR equivalent ISO Standards.

Server Rack 6U adopts Welded frame, reliable structure.

Powder-coated finish with pretreatment process meeting all industry standards.

Floor-standing or wall-mount easy installation.

Optional adjustable feet and heavy-duty castors.

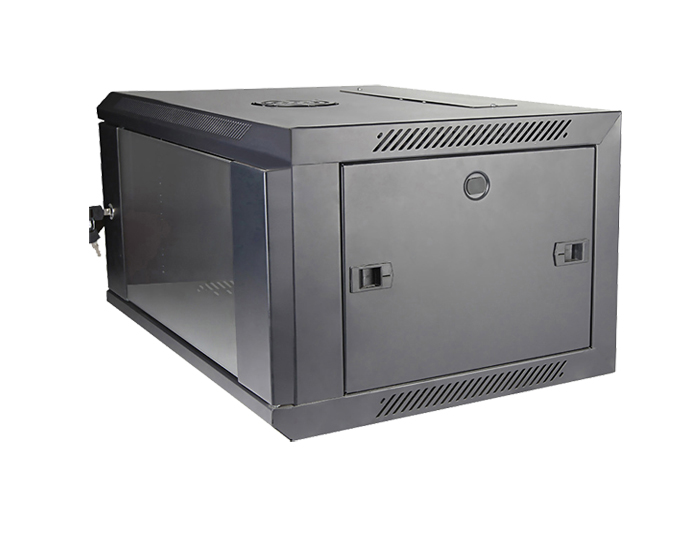

6U Server Rack adopts removable side panels, optional side locks.

Top and bottom Panel with ventilation and cable entry facility.

Provision to mount cooling fans on the top panel.

Fans, Ø 4.7" (120 mm).

The turning angle of the front door is over 180°.

Intended for installation of 19" standard equipment.

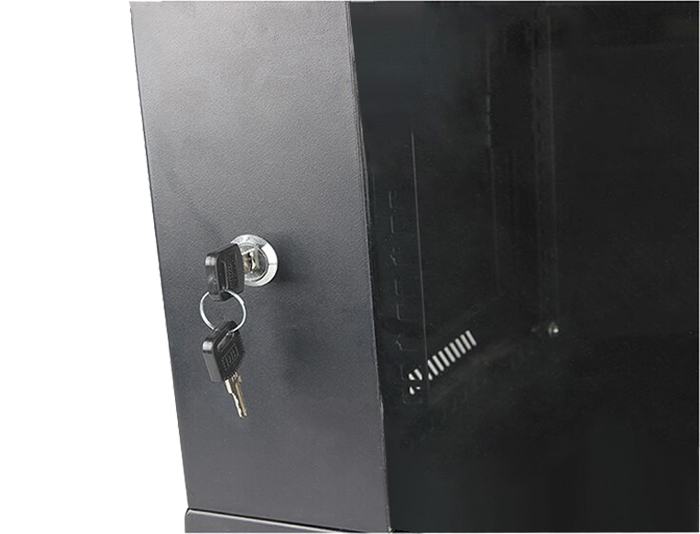

Locks securely to help prevent damage, tampering or theft.

Grounding and Bonding Options. 100% assured compatibility with all equipment conforming to DIN 41494 (General industrial standard for equipment).


Product Details:

Rack TypeServer RackStyleWall Mount
ColorBlack / GreyDimensions (HxWxD)6U; 14.4"x23.6"x17.7" (368x600x450mm)
Factory Preset Rack Depth17.0'' (430 mm)Weight Capacity - Stationary198.4lbs (90kg)
 MaterialMounting profile: 1.5mm SPCC cold rolled steel construction;Others: 1.2mm SPCC cold rolled steel construction. Rack Height4U / 6U / 9U / 12U / 15U or Customized
Mounting RailsSquare-PunchedGrounding WireFront and back door frames
InstallationStandard EIA 19" Rack RailsDevice CompatibilityRouters; Modems; Network Switch; UPS; Server.
Protection LevelIP20Included Accessories28 pieces each of 12-24 screws and washers


Application:

Data application / IT Equipment.

Perfect for Private / enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-206A4U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206B6U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206C9U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206D12U19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206E15U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
