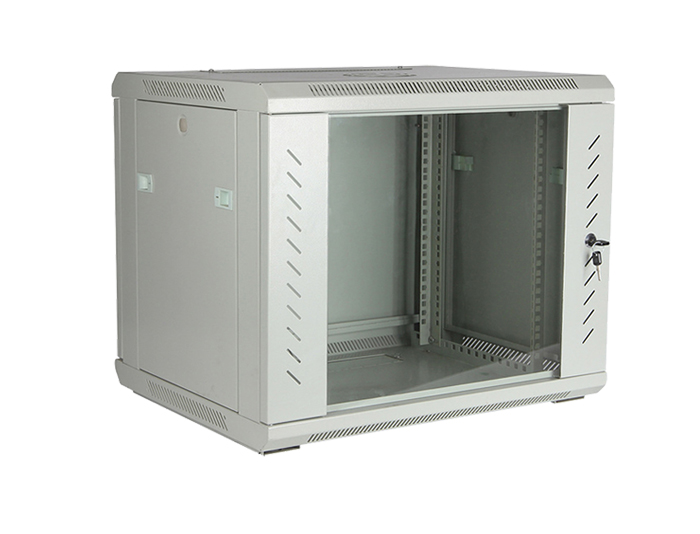

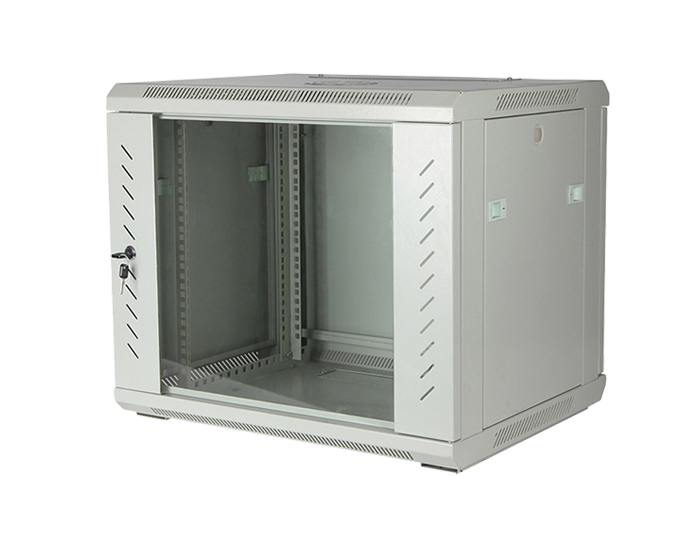

9U Wall Mount Network Cabinet, Black / Grey, TSF-206C

Publisher: MJADOM

Author: Andy

9U Network Cabinet is ideal for areas that don't have enough equipment to require a full-size cabinet and protects computers, routers, modems, and other devices in a space-saving. In Wall Network Cabinet are available from 4U to 15U Variants with 400mm, 450mm, 500mm, and 600mm deep configuration.

Description:

Wall Mount Network Cabinet is ideal for areas that don't have enough equipment to require a full-size cabinet and protects computers, routers, modems, and other devices in a space-saving. 9U Network Cabinet adopts ventilated or removable panel design that allows generous airflow to keep equipment operating safely.

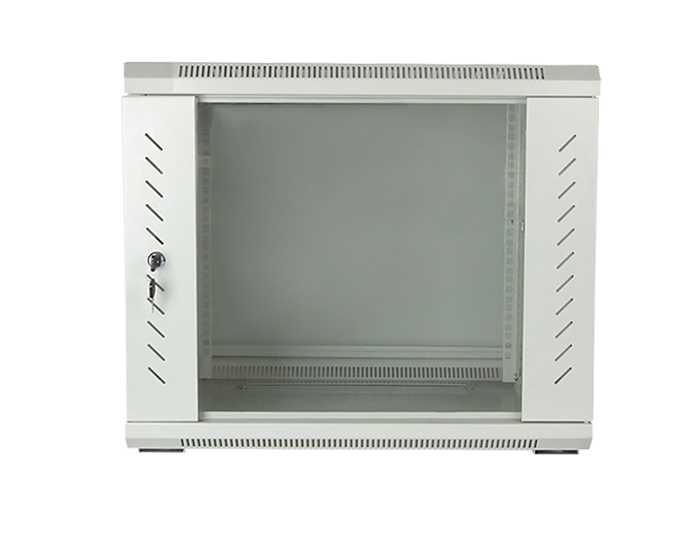

Configuration for standard racks is welded frame integrated with side panels and vented top cover with fan mounting provision, while the front glass with lock & key provides the visibility & security, rear side of the Rack is provided with the wall mounting slots for your equipment. In Wall Network Cabinet are available from 4U to 15U Variants with 400mm, 450mm, 500mm, and 600mm deep configuration.



MJADOM has a powerful OEM service can undertake customized service according to your requirements.


Features:

Home Network Cabinet Comply with DIN 41494 OR equivalent ISO Standards.

Small Network Cabinet adopts Welded frame, reliable structure.

Powder-coated finish with pretreatment process meeting all industry standards.

Floor-standing or wall-mount easy installation.

Optional adjustable feet and heavy-duty castors.

Network Cabinet 9U adopts removable side panels, optional side locks.

Top and bottom Panel with ventilation and cable entry facility.

Provision to mount cooling fans on the top panel.

Fans, Ø 4.7" (120 mm).

The turning angle of the front door is over 180°.

Intended for installation of 19” standard equipment.

Locks securely to help prevent damage, tampering, or theft.

Grounding and Bonding Options. 100% assured compatibility with all equipment conforming to DIN 41494 (General industrial standard for equipment).


Product Details:

Rack TypeNetwork CabinetStyleWall Mount
ColorBlack / GreyDimensions (HxWxD)9U; 19.7"x23.6"x17.7" (501x600x450mm)
Factory Preset Rack Depth17.0'' (430 mm)Weight Capacity - Stationary198.4lbs (90kg)
 MaterialMounting profile: 1.5mm SPCC cold rolled steel construction; Others: 1.2mm SPCC cold rolled steel construction. Rack Height4U / 6U / 9U / 12U / 15U or Customized

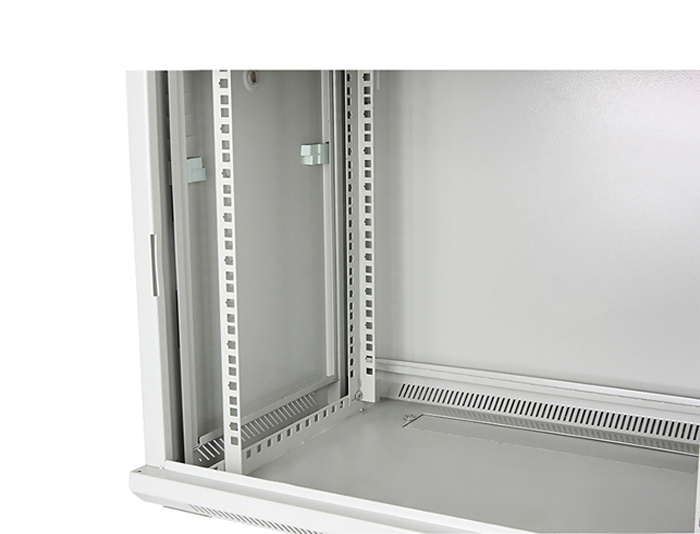

Mounting RailsSquare-PunchedGrounding WireFront and back door frames
InstallationStandard EIA 19" Rack RailsDevice CompatibilityRouters; Modems; Network Switch; UPS; Server.
Protection LevelIP20Included Accessories28 pieces each of 12-24 screws and washers


Application:

Data application / IT Equipment.

Perfect for Private / enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-206A4U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206B6U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206C9U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206D12U19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet
RGP-TSF-206E15U 19 Inch Wall Mount Server Rack / Wall Mount Network Cabinet


Related Products

42U Server Rack / 42U Network Cabinet with Glass Door, TSF-207B
42U Server Rack / 42U Network Cabinet with Glass Door, TSF-207B

TSF-207B Server Rack 42U adopts ventilated or removable panel design that allows generous airflow to keep equipment operating safely. Toughened glass door or Perforated door with turning angle over 180 degrees.

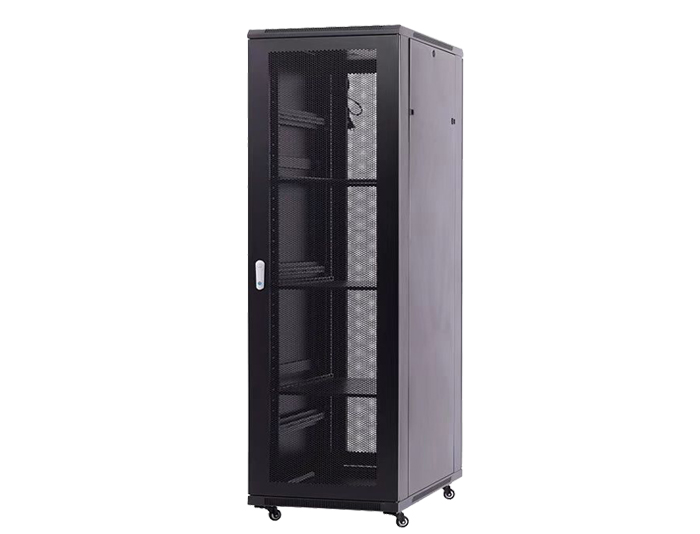

42U Server Rack / 42U Network Cabinet with Perforated Door, TSF-207C
