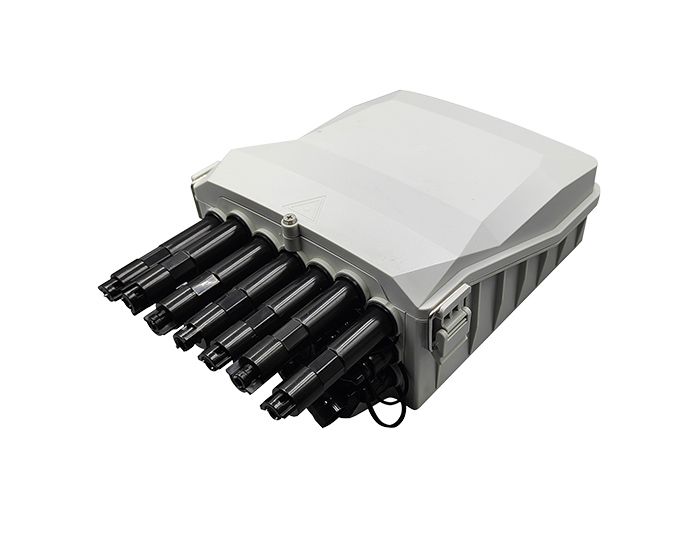

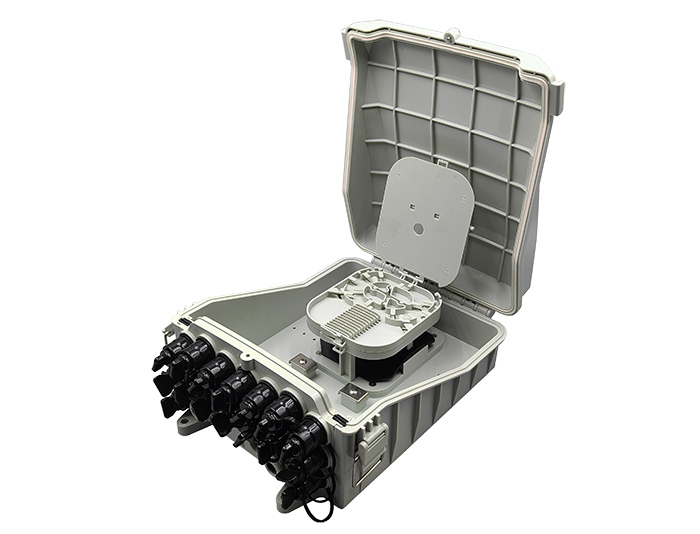

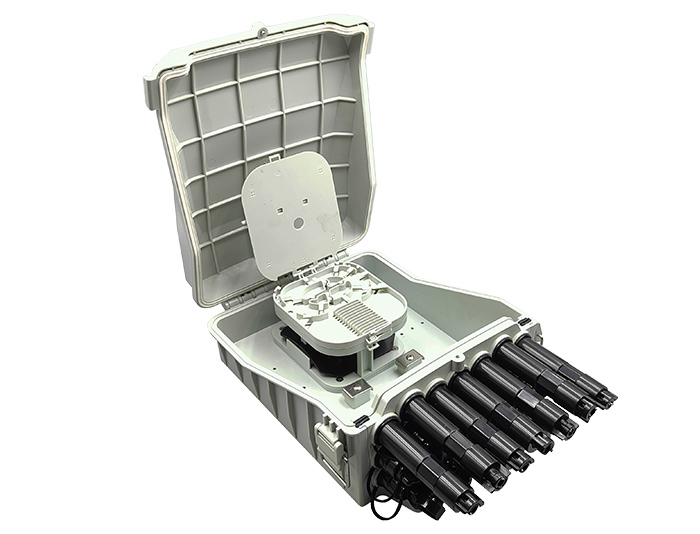

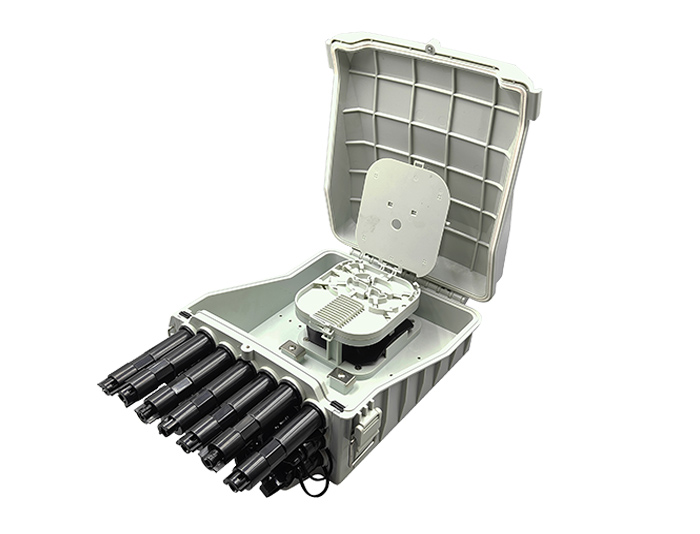

16 Core Pre-Connectorized Fiber Optic Cable Box F2E-507GX

Publisher: MJADOM

Author: Andy

RGP-F2E-507GX  16 Core Pre-Connectorized Fiber Optic Cable Box provides a high-density wall-mounted, pole-mounted, and aerial mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


Description:

RGP-F2E-507GX  16 Core Pre-Connectorized Fiber Optic Cable Box provides a high-density wall-mounted, pole-mounted, and aerial mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. The Pre-Connectorized Cable Box is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, distribution can be done in sub box. The  Pre-Connectorized Drop Cable Box can be used for FTTH deployments (PON and P to P networks) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside, Especially the bottom plate is changeable.


Feature:

Total enclosed structure.

Closure Material: PC+ABS, Water-proof, Dust-proof, anti-aging design; Protection level up to IP65.

The cable entry uses cable gland to provide protection at the bottom.

8/16 cores fiber termination capacity.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution can be done in the box.

180-degree access with buckled lock structure.

Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.



Dis-mountable adaptor panel, Support mid-span termination.

Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.



All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion.

Integrated with flap-up splice cassette and feeder cable can be placed by expression port, easy for maintenance and installation.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

Wall-mounted, Poled-mounted.

RoHS compliance.


Applications:
Aerial mounting & Pole mounting & Wall mounting applications.


Configuration

Technical Specification:

MaterialPC+ABSDemension (W*H*D)306mmx237mmx116mmMax Splicing (Core)24
IP RateIP65Weight1.2kgWaterproof Adapter8 /16 pcs of SC
Insertion loss≤0.15dBUPC return loss≥50 dBAPC return loss≥60 dB
Working temperature-40℃~+85℃Relative humidity≤85%(+30℃)Atmospheric pressure70KPa~106 KPa
Max. diameter of cable(mm)1 uncut of port can support Φ8~14 mm; 2 branch ports for distribution cable Φ10~16mm;

Standard Accessories:

ItemNameUsageQuantity
1Splice cassetteTo splice the fiber opticSame as capacity
2Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
3Nylon TieTo fix buffer tubes with fibers insideSame as capacity
4Grounding WireTo connect with grounding device1pc
5Abrasive ClothTo polish fiber optic cable1pc
6Labelling PaperTo label fibers1 set
7Buffer TubeTo protect fibers and be fixed on splice trays1pc
8Installation bolts and nutsTo fix splice cassette1 set

Shipping Information:

SpecificationSizePcs/CartonWeight
Internal Carton Box310mmx240mmx120mm1 pc1.7 KGS
Outside Carton Box770mmx520mmx340mm10 pcs17 KGS

Configuration :

Model No.Spliced fiber storage capacitySize(mm)H*D*WCable portsMax. diameterof cable(mm)Applicable Cable DiameterAdaptors
 RGP-F2E-507GX 24 Splices(2*12 Splices) 306mmx237 mmx116mm1 Uncut Port & 2 Round Port + 16 Ports Pre-Connectorized Patch Cords1 uncut of port can support                   Φ8~14 mm;2 branch ports for distribution cableΦ10~16mm;16 Round ports forPre-Connectorized Reinforcedwater-proof adapter for SC/APC  1 pc of 1x16 PLC Splitter
