16 Core Fiber Optic Distribution Box FDB-016C2

Publisher: MJADOM

Author: Andy

RGP-FDB-016C2  Fibre Distribution Box also called Fiber Terminal Box are designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.

RGP-FDB-016C2  Fibre Distribution Box also called Fiber Terminal Box are designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor fiber termination box and outdoor fiber termination box models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

Can accommodate 1x16 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 16 FTTH drops.

Wall and pole mountable.

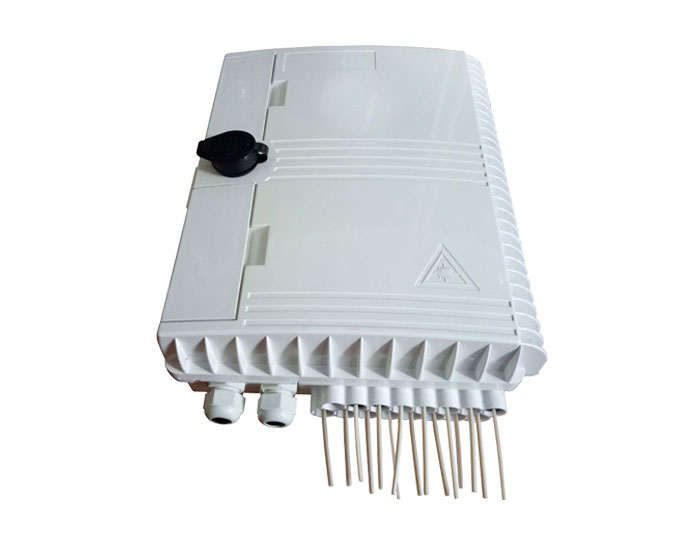

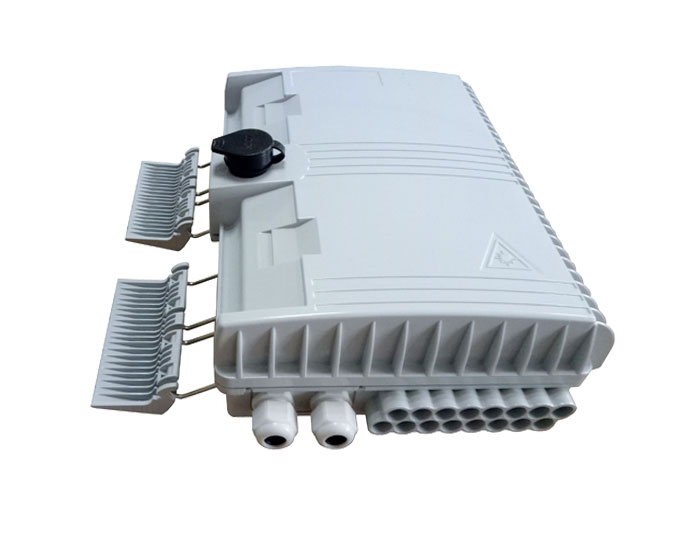

2 inlet ports( for cables with max diameter 14 mm), 16 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

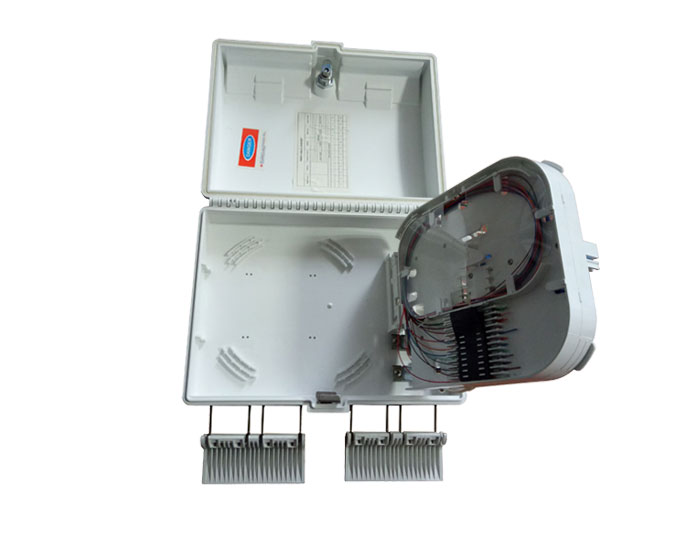

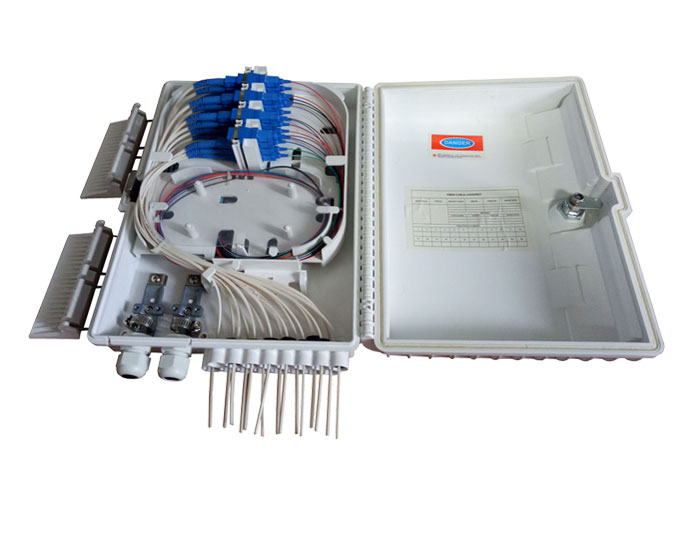

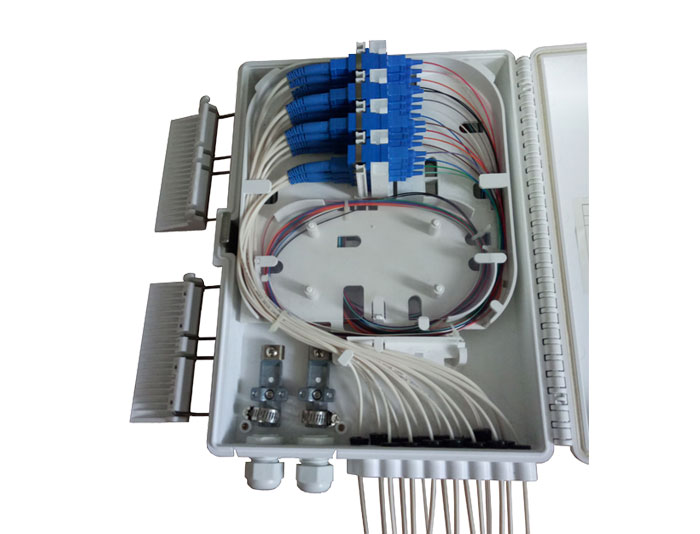

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance

FTTH access network.

Telecommunication Networks.

CATV Networks

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-016C2

16 Splices,

16 SC/LC Duplex adaptors

or 1x8 PLC Splitter

315mmx236mm

x100 mm

10 PCS2 Inlet Port ( Cut or Uncut Port )+16 Drop Cable Outlet Ports15.7 KGS

510mmx320mm

x490mm
