48 Core Outdoor Fiber Distribution Box - Fiber Distribution Hub FDB-048A

Publisher: MJADOM

Author: Andy

RGP-FDB-048A 48 Core Fiber Distribution Box also called Fiber Distribution Hub, It's designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures.


It's the New design box easy to pre-install PLC Splitter and fiber adapter, save time and energy. In FTTH application, it is applied to the second stage splitter point of the optical fiber network.

RGP-FDB-048A 48 Core Fiber Distribution Box also called Fiber Distribution Hub, It's designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

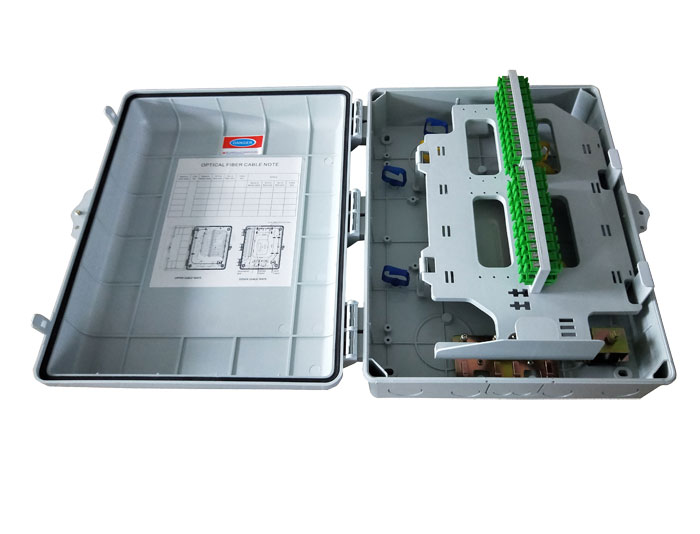

Can accommodate 1x48 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 48 FTTH drops.

Wall and pole mountable, Grounding device included.

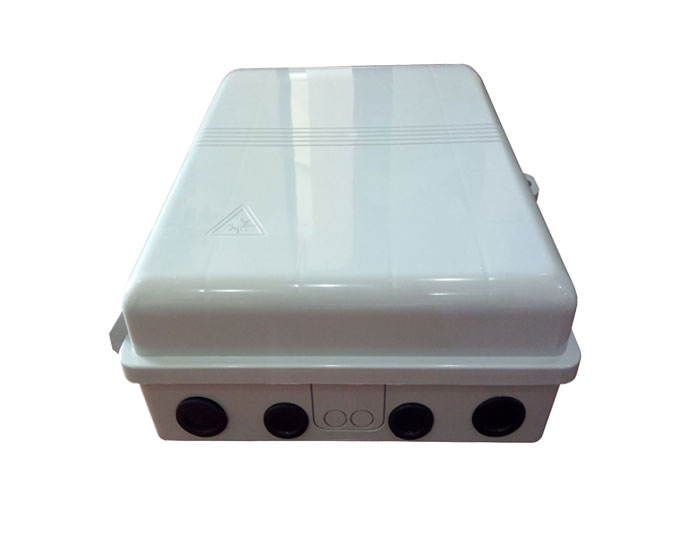

2 inlet ports( for cables with max diameter 21 mm), 2 outlet ports.

Suitable for used uncut OR cut fiber optic cable.

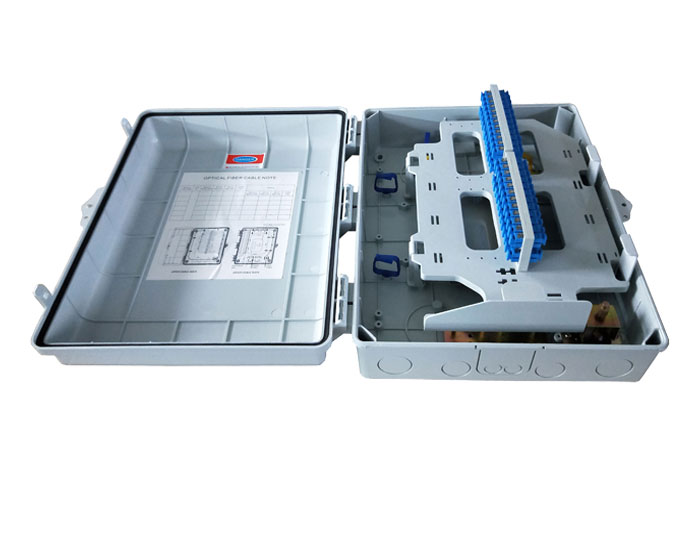

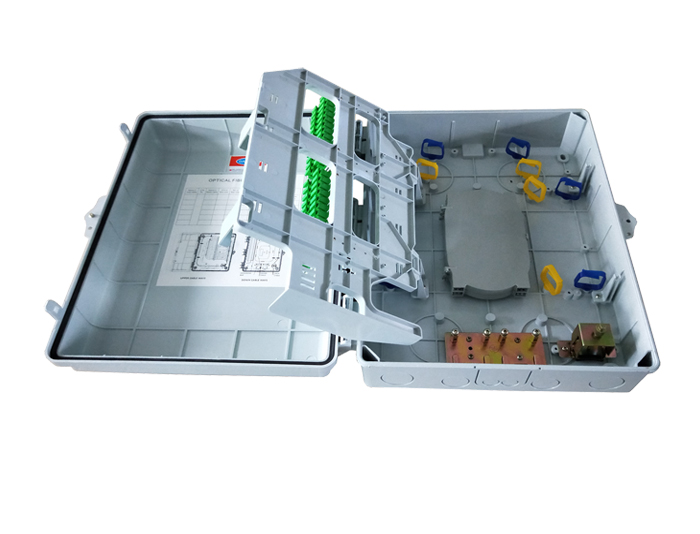

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.

Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-048A

48 Splices,

48 SC/LC Duplex adaptors

or 1x8 PLC Splitter

410mmx370mm

x130 mm

5 PCS

2 Inlet Port ( Cut or Uncut Port )

+48 Drop Cable Outlet Ports

27.5 KGS

420mmx380mm

x650mm
