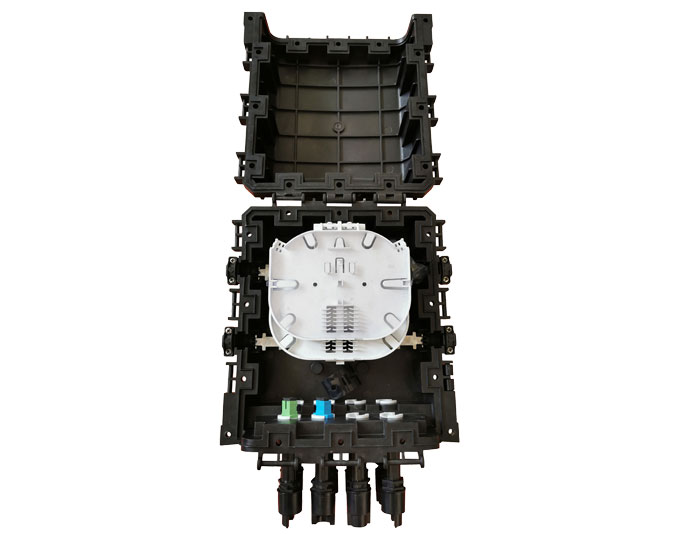

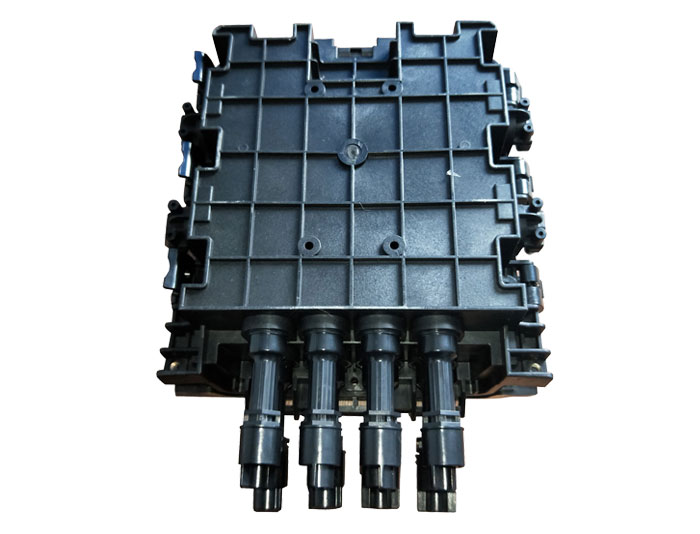

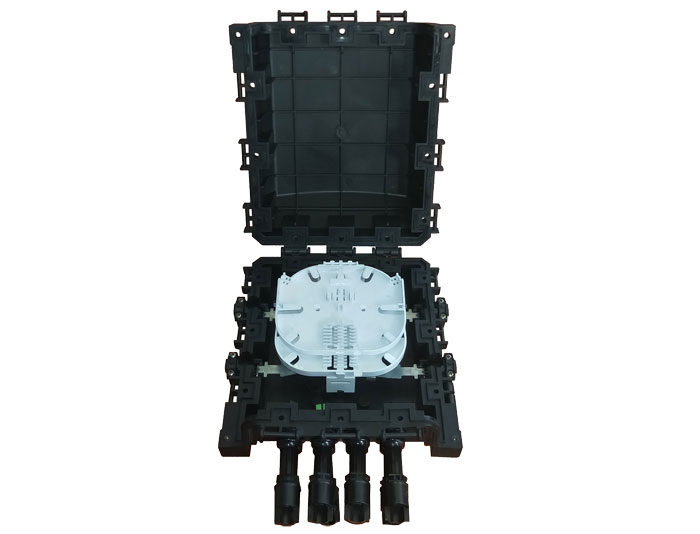

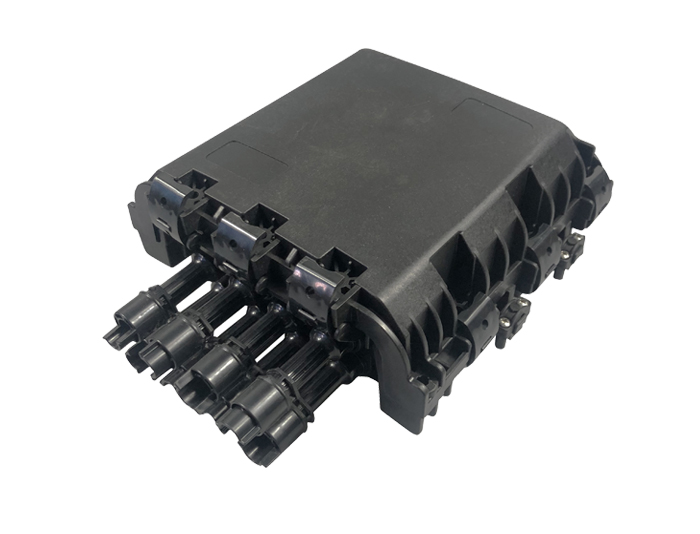

8 Core Outdoor FTTH Fiber Termination Box F2E-601-8C

Publisher: MJADOM

Author: Andy

RGP-F2E-601-8C 8 Core FTTH Fiber Termination Box also called FTTH Terminal Box is designed to protect joints of optical cable can hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. Available for 3 trays and each tray can splice 24 fibers.

RGP-F2E-601-8C 8 Core FTTH Fiber Termination Box also called FTTH Terminal Box is designed to protect joints of optical cable can hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. Available for 3 trays and each tray can splice 24 fibers.


It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box, and meanwhile, it provides solid protection and management for the FTTx network building.

Fully enclosed structure.

Material: Modified PP, with anti-UV, and corrosion resistance material, waterproof, dustproof, anti-aging design, IP-65 protection level for outdoor.

Integrated with 3 x splice trays,splice tray can be flipped up, and maximum 72F splice capacity.

Fiber bend radius control more than 30mm.

Support Cut & Uncut optical fiber.



Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

Base and cover sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

The splice trays are hinged for access to any splice tray, without disturbing other trays.

The inner parts and fixing parts are made of stainless steel

With an earthing device protect it from damage by lightning



1x8 PLC splitter can be installed in each splice tray.

8 pcs of pre-installed reinforced water-proof adapters for SC.

Cable, pigtails, and patch cords are running through their own paths without disturbing each other, Easy for maintenance and expansion.


Wall mounted installation

Pole mounted installation

Aerial hanging installation

Manhole installation

Direct buried

Configuration

Order Informartion:

Model No.Spliced fiber storage capacityHeight x diameterCable portsMax. diameterof cable(mm)Applicable Cable DiameterPLC Splitter
RGP-F2E-601-08C

3 Splice Trays

3pcs x 24 Splices

248mmx276mm x124.5mm

2 Inlet & 2 Outlet +8 pcs

of FTTH Drop Cable.

Inlet & Outlet of port can support

the maximum diameter Φ11 mm

8 Port 2.0x3.0mm or

2.0x5.0mm FTTH Drop Cable

1 pcs of 1x8 PLC Splitter
