2 Core Fiber Access Terminal Box FDB-02C3

Publisher: MJADOM

Author: Andy

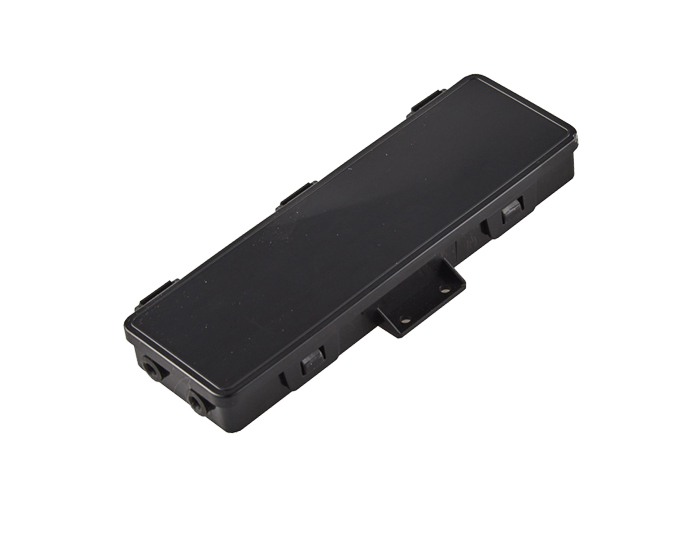

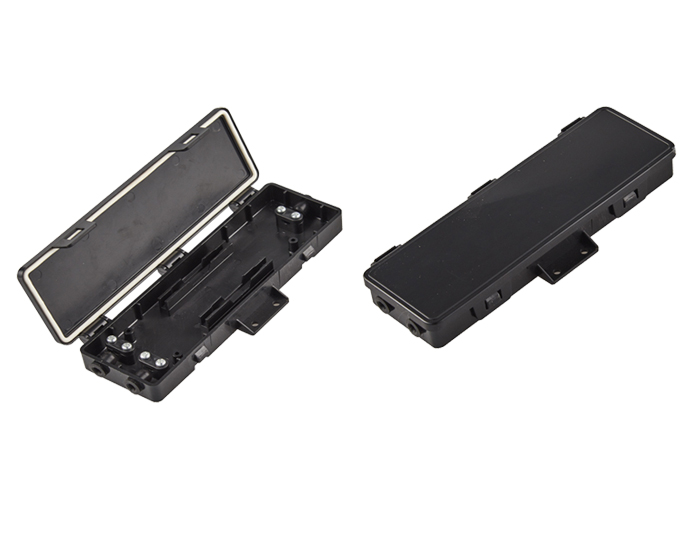

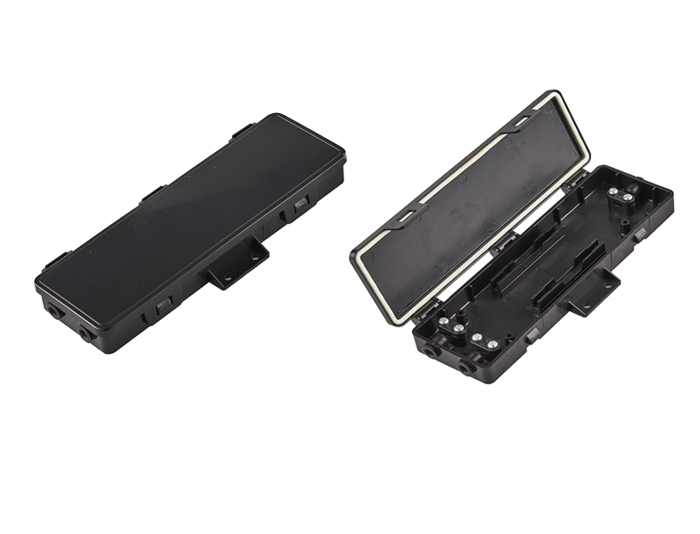

RGP-FDB-02C3 2 Core Fiber Access Terminal Box (ATB), known as optical termination box (OTB) as well, the box is made of PC/ABS alloy, which is used to connect drop cables and passive ONU devices. It is installed on indoor walls to provide fiber sockets. The box supports fusion splicing, mechanical splicing, and Fiber Adapters.

RGP-FDB-02C3 2 Core FTTH Access Terminal Box, known as optical termination box (OTB) as well, the box is made of PC/ABS to splice and connect fibers in the FTTX network system, makes the delivery of next-generation services into multiple dwelling or multiple tenant buildings easier. Individual boxes support fusion splicing, mechanical splicing, and Fiber Adapters.

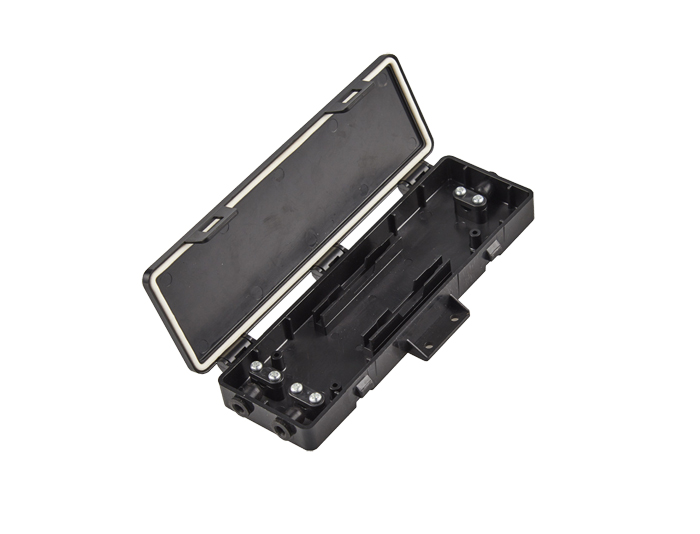

The box based on a modular splice cassette system, the technology consists of a splice cassette, a termination cassette and a cable guide element, the IP level is IP55.


MJADOM provides a full range of the Fiber Access Terminal Box with SC, LC Fiber Optic Adapter, high-performance fiber access terminal box to support fusion splicing, mechanical splicing, and Fiber Adapters. Get Quote Now !!



Features:


Material: PC/ABS Alloy or Fire-Retardant ABS.

UV and weatherproof; Up to 2 FTTH drops; Wall mountable Installation.

Inlet ports( for cables with max diameter 8 mm), 2 outlet drop cable ports.

Suitable for used uncut fiber optic cable.

Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.


The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degrees for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65; RoHS compliance.




Application:

Wall and pole mountable.

Widely used in FTTH access network.

Telecommunication Network.

CATV Networks.

Data communications Networks.

Local area network.



Complied Standards:

Meet national standard Q / CT 2353-2011.


Configuration

Order Information:

Model No.DimensionMax CapacityInlet Cable DimensionOutlet Cable Dimension(mm)
 RGP-FDB-02C3 180mmx75mmx20mm2 Splices
 for cables with max diameter 8 mmfor cables with max diameter 8 mm
