8 Core Fiber Access Terminal Box-Fiber Access Point GZF-8C

Publisher: MJADOM

Author: Andy

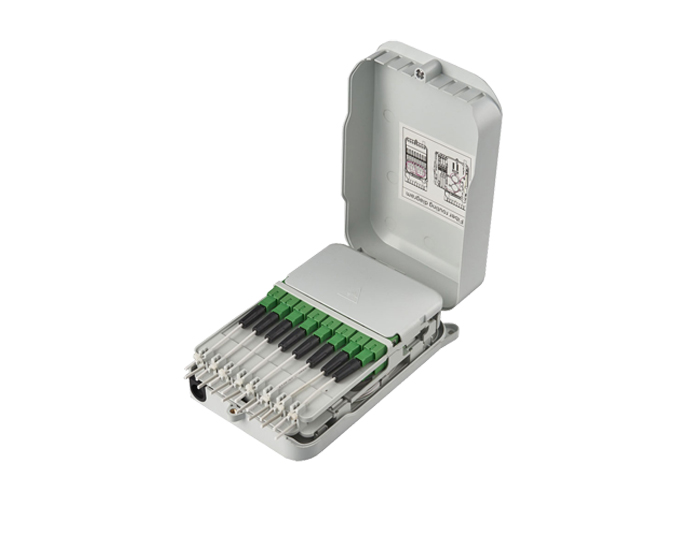

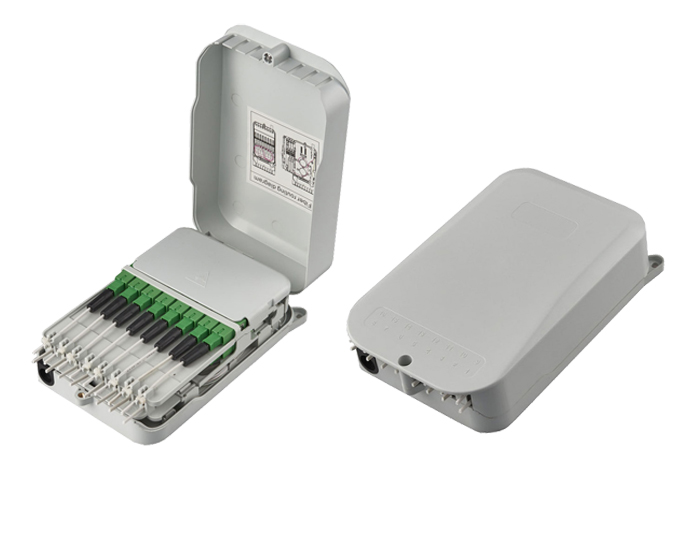

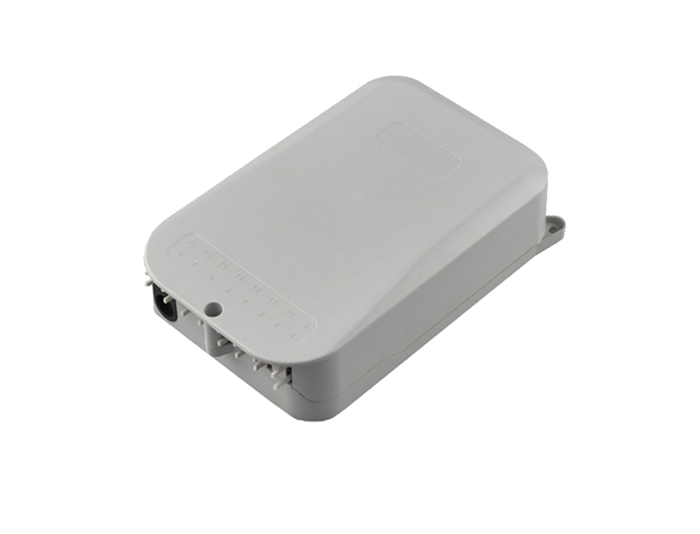

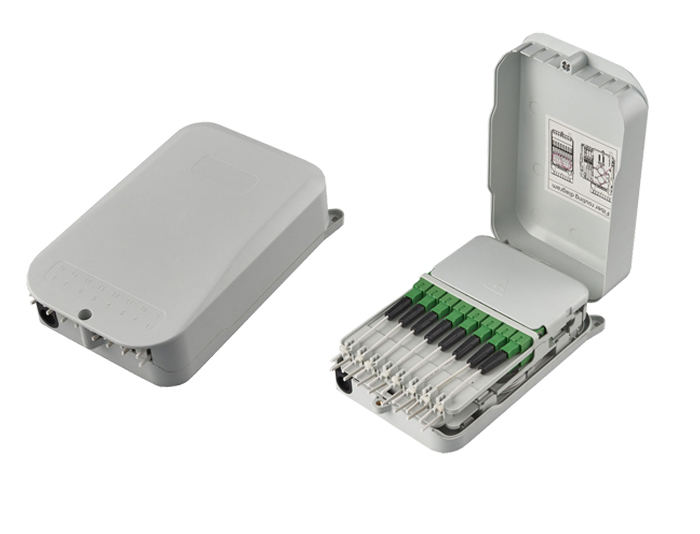

RGP-GZF-08C 8 Core Fiber Access Terminal Box (ATB) also called Fiber Access or Fiber Access Point, The box is made of PC/ABS alloy or 100% New ABS, which is used to connect drop cables and passive ONU devices. It is installed on indoor walls to provide fiber sockets. The box supports fusion splicing, mechanical splicing, and Fast Connector.

RGP-GZF-08C 8 Core Fiber Access Terminal Box (ATB) also called Fiber Access or Fiber Access Point, The box is made of PC/ABS alloy or 100% New ABS, which is used to connect drop cables and passive ONU devices. It is installed on indoor walls to provide fiber sockets. The box supports fusion splicing, mechanical splicing, and Fast Connector.


MJADOM designed 8 Core Fiber Access Terminal Box (ATB) to protect the termination of FTTH Drop Cable and connect with PON ONU via patch cords in the FTTH network.


MJADOM provides a full range of the Fiber Access Terminal Box with SC, LC Fiber Optic Adapter, high-performance fiber access terminal box to support fusion splicing, mechanical splicing, and Fiber Adapters. Get Quote Now !!


Features :

Total enclosed structure, Self-clip design, easy to install.

Accommodates up to 8 termination/splice connections - Up to 8 SC simplex adapters.

Material: The box made of high impact plastic PC+ABS(Halogen free), Waterproof, Dust-proof, Anti-aging, Protection level up to IP55, RoHS compliant; conforms to UL 94 V-0.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one box.

The swing distribution panel, feeder cable can be placed by expression port, easy for maintenance and installation.

Features pass-through functionality for uncut cables

1 inlet port, 8 outlet ports, max capacity 8 fibers, Rubber sealing circle for waterproof

Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install

Suitable for wall mounting.



Performance :

Operation Temperature : -40℃ ~ +85℃.

Storage Temperature : -40℃ ~ +85℃.

Atmospheric pressure : 70kPa - 106 kPa.

Cable Type: Drop Cable, pigtail, outdoor cable (8mm - 12mm ).


Application:

Wall mountable.

Widely used in FTTH access network.

Telecommunication Network.

CATV Networks.

Data communications Networks.

Local area network.



Complied Standards:

Meet national standard Q / CT 2353-2011.

Configuration

Order Information:

Model No.DimensionMax CapacityInlet Cable DimensionOutlet Cable Dimension(mm)
 RGP-GZF-08C 220mmx140mmx55mm8 SC simplex adapters 10mmDrop cable 2*3.0mm figure-8 FRP LSZH
