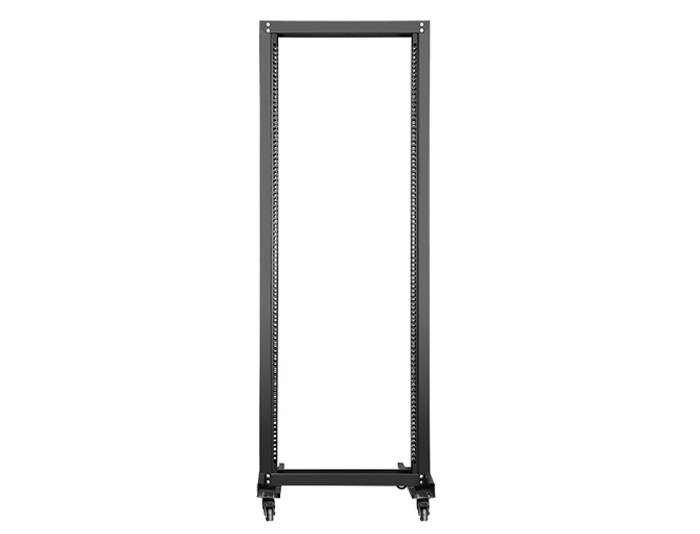

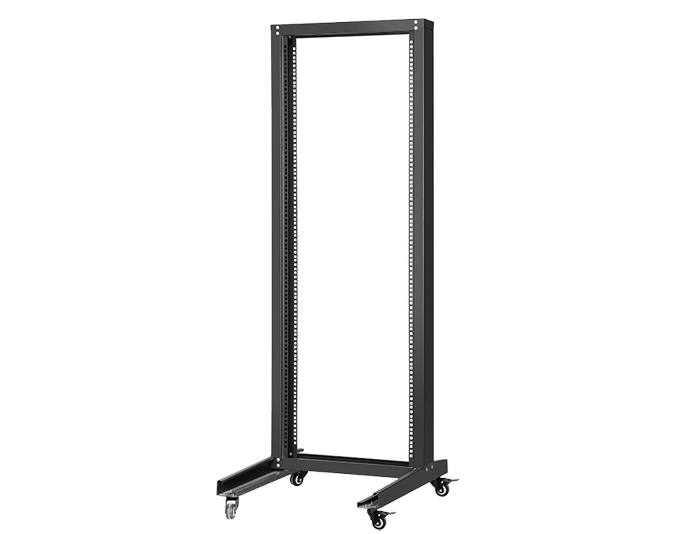

42U 2-Post Open Frame Rack, Black / Grey TSF-205A

Publisher: MJADOM

Author: Andy

Open Frame Rack accommodates 42U of rack space for 19-inch rack-mount applications. MJADOM provides 42U open rack that includes two and four-post designs. 2 Post Rack 42U provides cable routing and storage while offering unobstructed airflow and fast, easy access to mounted equipment.

Description:

Open Frame Rack accommodates 42U of rack space for 19-inch rack-mount applications. MJADOM provides 42U open rack that includes two and four-post designs. 2 Post Rack 42U provides cable routing and storage while offering unobstructed airflow and fast, easy access to mounted equipment.



Open Rack Frame easy to install, combined with 12-24 threaded and numbered mounting holes, and bolt-down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required.



Open Rack Server complies with ANSI/EIA, RS-310-D, IEC297-2, DIN41491, PAPT1, DIN41494, PART7, GB/T3047.2-92 standard.


Features:

Double 19" steel frame formed by welding, curve, and hole punching.

Server Rack Open made up of SPCC cold rolled steel construction with black powder-coated finish for durability.

Supports 750 lbs (362.9 kgs) of rackmount equipment.

12-24 threaded and numbered mounting positions.

Open Rack / Open Frame Rack / Open Rack Frame.

The numbered square hole makes it easy to locate and position equipment when installing.

Color: Electrostatic Painting, Black (RAL9005), other colors are available upon request.

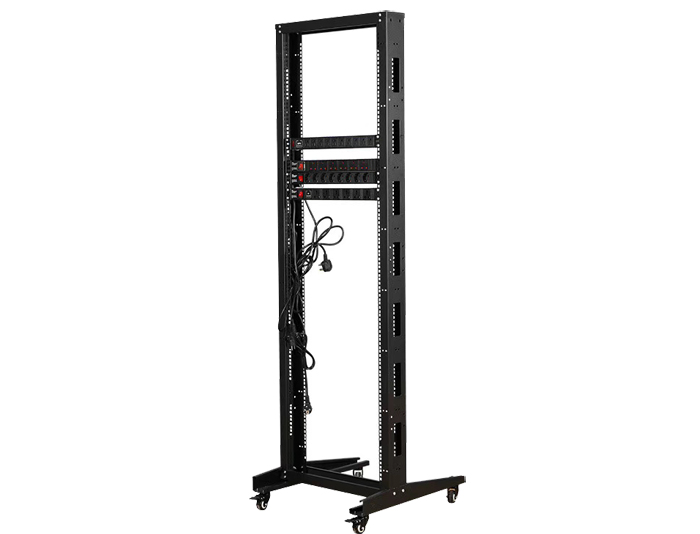

Toolless button keyhole mounting slots accept PDUs, Cable managers, Patch Panels, Fixed Shelf, Sliding Shelf, Blank panels, etc.

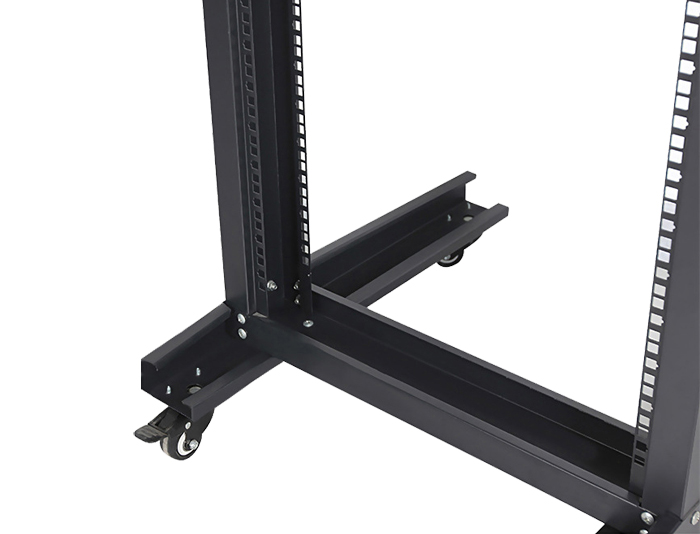

Knockdown design, easy to set up and transport.

Package: one carton, prevents crushing and punching, the wooden package is available.

Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491, PAPT1, DIN41494, PART7, GB/T3047.2-92 standard;


Product Details:

Rack TypeOpen RackStyleFloor-Standing
ColorBlack / GreyEIA Mounting Rails12-24 threaded and numberedvertical mounting rails
Maximum Device Depth (cm)121.92Maximum Device Depth (mm)1,219
MaterialFrame: 1.2mm SPCC cold rolled steel construction;Base: 2.0 mm SPCC cold rolled steel construction.Rack Height22U / 27U / 32U / 37U / 42U
Weight Capacity - Stationary (kg)363 KGSLoad Rating750 lbs
InstallationStandard EIA 19" Rack RailsDevice CompatibilityPatch Panel; Network Switch; UPS; Server
Number of Vertical Mounting Rails2Included Accessories28 pieces each of 12-24 screws and washers


Application:

Data application / IT Equipment.

Perfect for Private / enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-205A137U 2-Post Open Frame Rack; Black / Grey; Load Rating: 750 lbs.
RGP-TSF-205A242U 2-Post Open Frame Rack; Black / Grey; Load Rating: 750 lbs.
RGP-TSF-205C137U 4-Post Open Frame Rack; Black / Grey; Load Rating: 750 lbs.
RGP-TSF-205C242U 4-Post Open Frame Rack; Black / Grey; Load Rating: 750 lbs.
