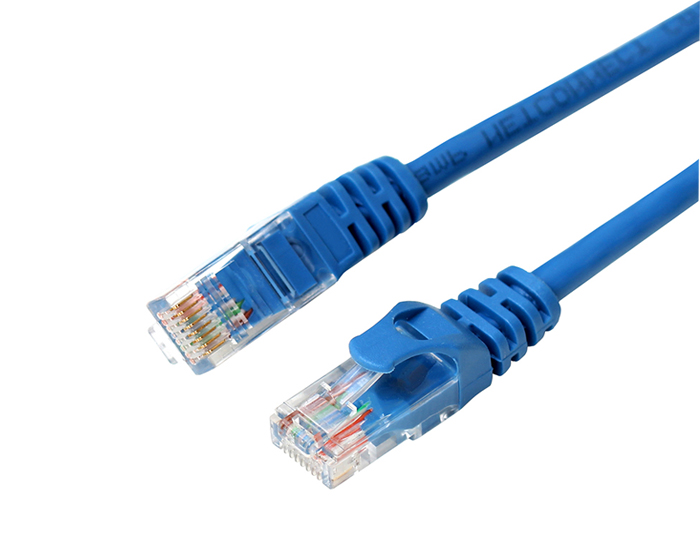

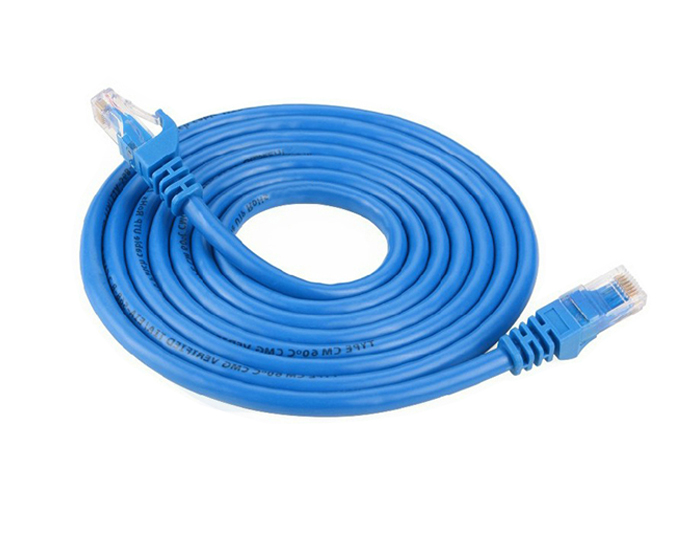

Cat6 Unshielded Ethernet Network Patch Cable,5M,Blue,1000Base-T TSF-305B

Publisher: MJADOM

Author: Andy

Cat6 network patch cable also called Patch Cords or Cat6 Cable or Patch Cord Cat6 is a cost-effective solution for indoor data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable. And Patch Cable Cat6 fully backward compatible with all the previous categories.

Description:

Cat6 network patch cable also called Patch Cords or Cat6 Cable or Patch Cord Cat6 is a cost-effective solution for indoor data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable. And Patch Cable Cat6 fully backward compatible with all the previous categories.



The Patch Cord Cat6 conductor applies Oxygen-free Copper with PVC CMX outer sheath, which is durable, flame-retardant, resistant to bending. Cat6 cable that is the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 1000Mbps within 100 meters applications. Patch Cords Cat 6 are not only halogen-free and flame-retardant (LSOH), but also GHMT certified for quality and performance.



Cat6 Patch Cord complies with cat6 patch panel and also backward compatible with CAT5E.


Features:

Stranded Oxygen-free Copper design and Passed the Fluke Channel Test.

Patch Cord Cat6 in accordance with the EIA/TIA 568 standard

Cable Type: Category6(Cat6)

Transmission Speed: Up to 1000 Mbps.

Rated for 250MHz communications.

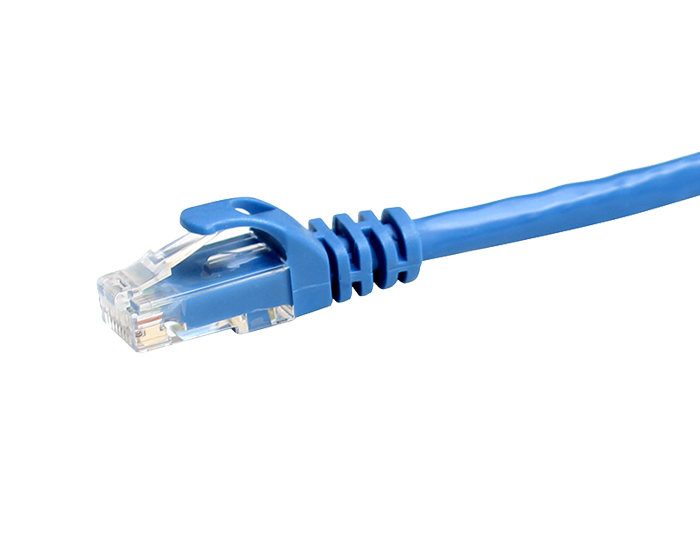

Connector Type: Unshielded gold plated RJ45(8P8C)

RJ45 Plug with 50µm gold-plated contacts.

Cable Conductor: Oxygen-free Copper 24-28AWG

Cable Jacket: PVC CMX or LSOH Available

GHMT Verified.


Product Details:

Patch Cable TypeCat6 Patch CordsWire SchemeT568B, Straight
Patch Cable JacketPVC CMXLength3m, 5m, 10m or customized
Conductor TypeStrandedConductor Material Oxygen-free Copper
Max Transmission Distance100mTwisted Pairs4 Pairs
Gauge (AWG)24-28AWGCable Outer Diameter (mm)6.2 ± 0.3
Data Rate Support1000Base-TStandard Bandwidth250MHz
Shielding TypeUnshielded (UTP)StandardISO/IEC 11801, ANSI/TIA-568.2-D
Operating Temperature-20°C to +75°C (-4°F to 167°F)Installation Temperature-10°C to +50°C (14°F to 122°F)

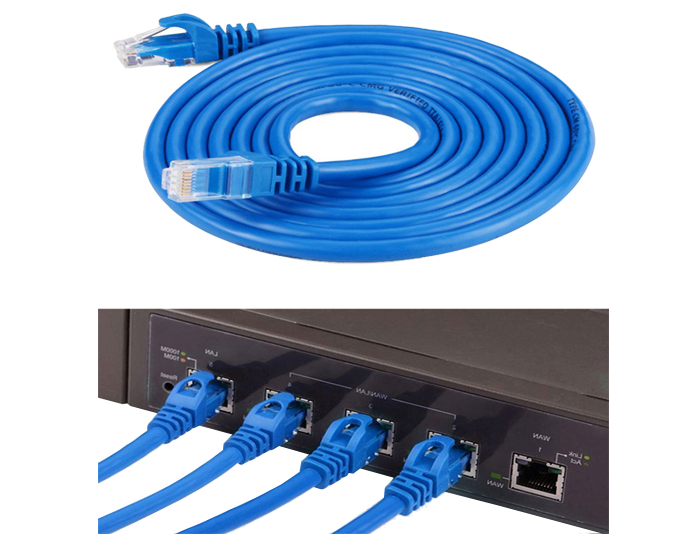

Application:

Rated for any 1/10GBase-T Ethernet.

Data applications (19" Rack & Cabinet).

Perfect for Private/enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.


Configuration

Order Information:

Model No.Product Description
RGP-TSF-305ACat5E UTP Unshielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305BCat6 UTP Unshielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305CCat6A FTP Shielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305DCat7 FTP Shielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305ECat8 FTP Shielded PVC CMX Ethernet Network Patch Cord


Related Products

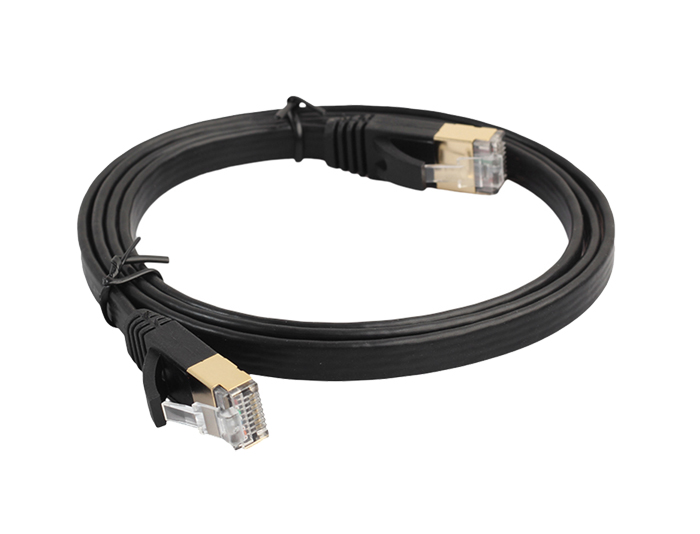

Cat7 Shielded Ethernet Network Patch Cable, 3M ,Black, 10GBase-T TSF-305D
