Description:
Category 8 network patch cord also called Cat8 Ethernet cable is the standard for next-generation twisted-pair cabling for indoor data center application, enables up to four times faster data transfer on the same cabling type, Patch Cords supporting 25GBASE-T and 40GBASE-T short-distance applications.

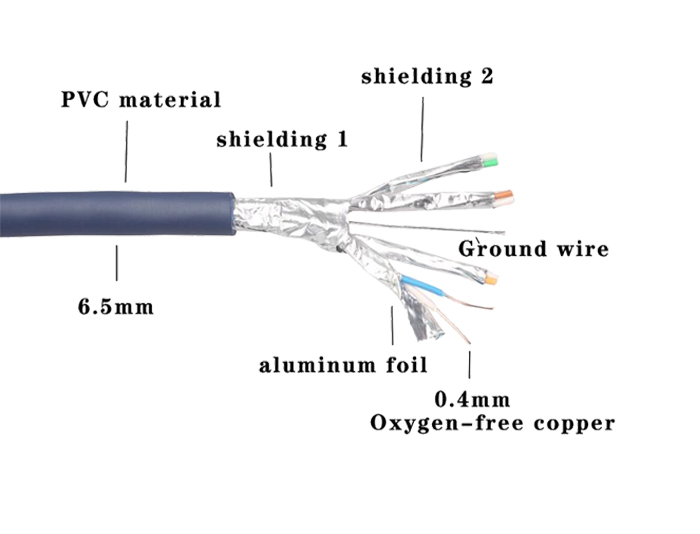

Cat 8 cables are not only halogen-free and flame-retardant (LSOH), but also GHMT certified for quality and performance. And it is fully backward compatible with all the previous categories. The cat8 patch cables conductor applies Oxygen-free Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CMX, which is durable, flame-retardant, resistant to bending.
Best Cat 8 ethernet cables are backward compatible with CAT5E, CAT6, CAT6A, and CAT7 Cable.
Features:
Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors).
Stranded Oxygen-free Copper design and Passed the Fluke Channel Test.
In accordance with the EIA/TIA 568 standard.
Cable Type: Category 8(Cat 8).
Transmission Speed: Up to 40,000 Mbps (40 Gbps).
Connector Type: Shield gold plated RJ45(8P8C).
RJ45 Plug with 50µm gold-plated contacts.
Cable Conductor: Oxygen-free Copper 24-28AWG.
Cable Jacket: PVC CMX or LSOH Available.
GHMT Verified.
Product Details:
| Patch Cable Type | Cat8 cable | Wire Scheme | T568B, Straight |

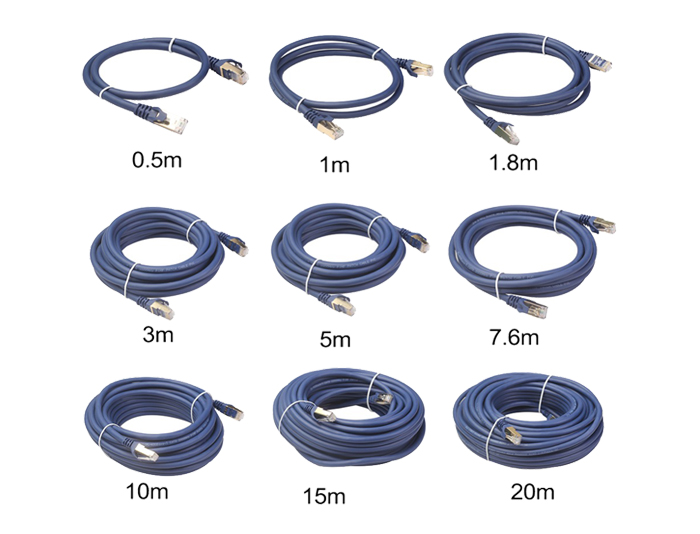

| Patch Cable Jacket | PVC CMX | Length | 3m, 5m, 10m or customized |
| Conductor Type | Stranded | Conductor Material | Oxygen-free Copper |
| Max Transmission Distance | 30m | Twisted Pairs | 4 Pairs |
| Gauge (AWG) | 24-28AWG | Cable Outer Diameter (mm) | 6.2 ± 0.3 |
| Data Rate Support | 25/40GBase-T | Standard Bandwidth | 2000MHz |
| Shielding Type | Shielded (FTP) | Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Operating Temperature | -20°C to +75°C (-4°F to 167°F) | Installation Temperature | -10°C to +50°C (14°F to 122°F) |
Application:
Rated for any 25/40GBase-T Ethernet.
Data applications (19" Rack & Cabinet).
Perfect for Private/enterprise networks.
Ideal for switches, servers, patch panels, or copper cabling solutions.
