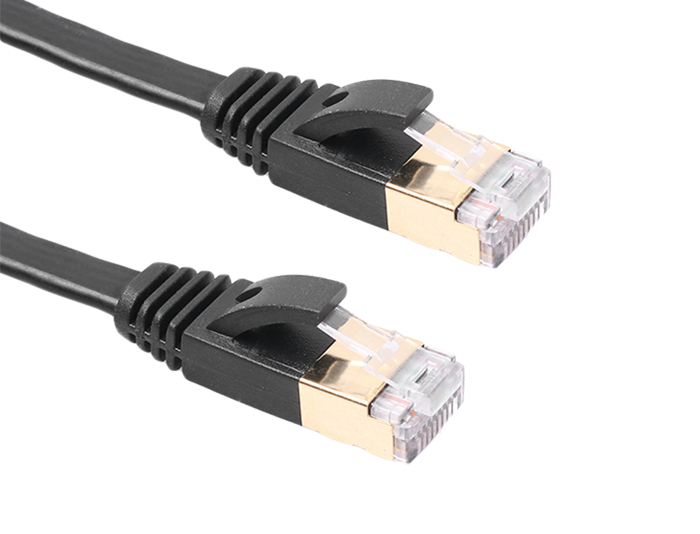

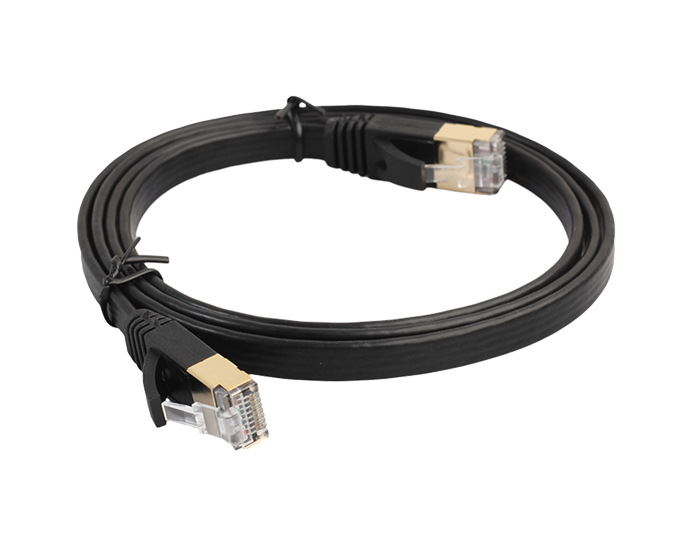

Cat7 Shielded Ethernet Network Patch Cable, 3M ,Black, 10GBase-T TSF-305D

Publisher: MJADOM

Author: Andy

Cat7 network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 600MHz within 100 meters of cable. 10G Patch Cord is fully backward compatible with all the previous categories. Cat7 patch cord ethernet complies with cat7 patch panel and also backward compatible with CAT5E, CAT6, CAT6A.

Description:

Cat7 network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 600MHz within 100 meters of cable. 10G Patch Cord is fully backward compatible with all the previous categories.



The cat7 patch cables conductor applies Oxygen-free Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CMX, which is durable, flame-retardant, resistant to bending.



Cat7 cable that is the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 10GBASE-T within 100 meters applications. Cat 7 patch cords are not only halogen-free and flame-retardant (LSOH), but also GHMT certified for quality and performance.



Cat7 patch cord ethernet complies with cat7 patch panel and also backward compatible with CAT5E, CAT6, CAT6A.


Features:

Suitable for 10 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors)

Stranded Oxygen-free Copper design and Passed the Fluke Channel Test.

Patch Cord 7a in accordance with the EIA/TIA 568 standard

Cable Type: Category 7(Cat 7)

Transmission Speed: Up to 10,000 Mbps (10 Gbps)

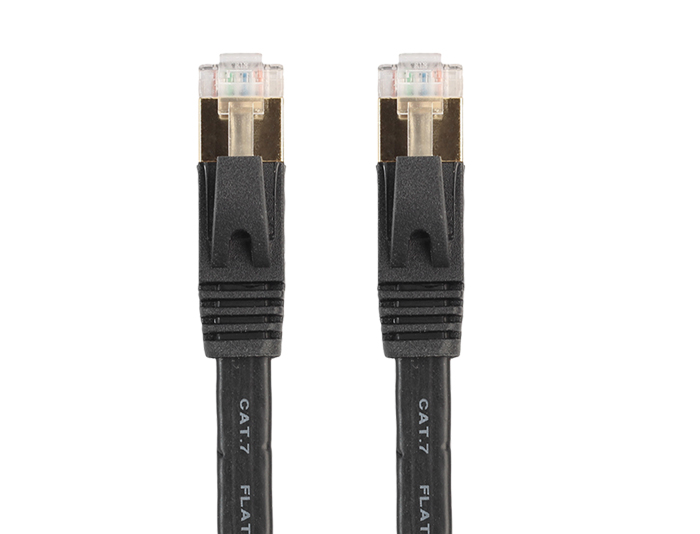

Connector Type: Shield gold plated RJ45(8P8C)

RJ45 Plug with 50µm gold-plated contacts.

Cable Conductor: Oxygen-free Copper 24-28AWG

Cable Jacket: PVC CMX or LSOH Available

GHMT Verified.


Product Details:

Patch Cable TypeCat7Wire SchemeT568B, Straight

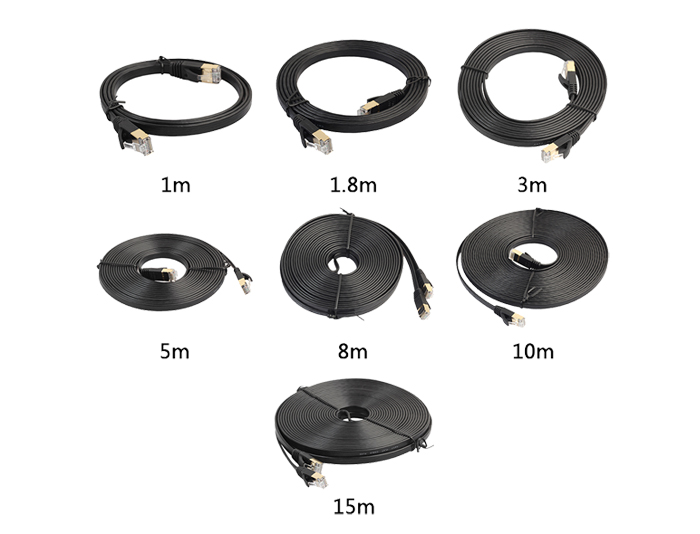

Patch Cable JacketPVC CMXLength3m, 5m, 10 or customized
Conductor TypeStrandedConductor Material Oxygen-free Copper
Max Transmission Distance100mTwisted Pairs4 Pairs
Gauge (AWG)24-28AWGCable Outer Diameter (mm)6.2 ± 0.3
Data Rate Support10GBase-TStandard Bandwidth600MHz
Shielding TypeShielded (FTP)StandardISO/IEC 11801, ANSI/TIA-568.2-D
Operating Temperature-20°C to +75°C (-4°F to 167°F)Installation Temperature-10°C to +50°C (14°F to 122°F)


Application:

Rated for any 10GBase-T Ethernet.

Data applications (19" Rack & Cabinet).

Perfect for Private/enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.


Configuration

Order Information:

Model No.Product Description
RGP-TSF-305ACat5E UTP Unshielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305BCat6 UTP Unshielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305CCat6A FTP Shielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305DCat7 FTP Shielded PVC CMX Ethernet Network Patch Cord
RGP-TSF-305ECat8 FTP Shielded PVC CMX Ethernet Network Patch Cord


Related Products

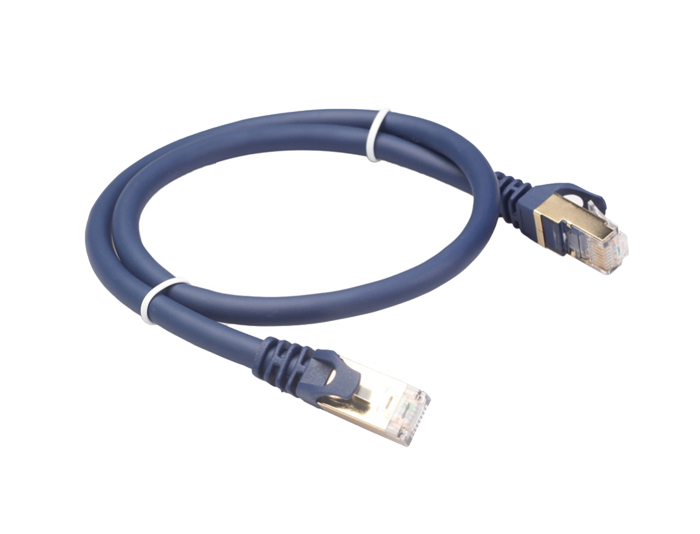

Cat8 Shielded Ethernet Network Patch Cable, 5M, 25/40GBase-T TSF-305E
Cat8 Shielded Ethernet Network Patch Cable, 5M, 25/40GBase-T TSF-305E

Cat8 Ethernet cable is the standard for next-generation twisted-pair cabling for indoor data center applications, Cat8 Patch Cords supporting 25GBASE-T and 40GBASE-T short-distance applications.

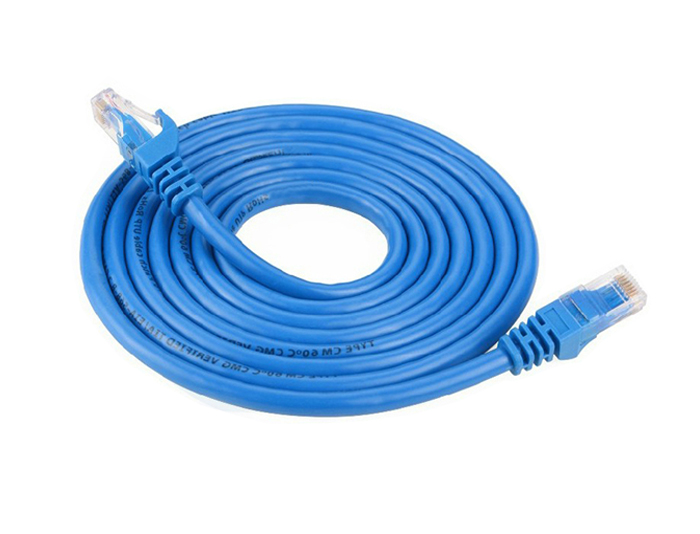

Cat6 Unshielded Ethernet Network Patch Cable,5M,Blue,1000Base-T TSF-305B
Cat6 Unshielded Ethernet Network Patch Cable,5M,Blue,1000Base-T TSF-305B

Cat6 network patch cable also called Patch Cords is a cost-effective solution for indoor data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable.

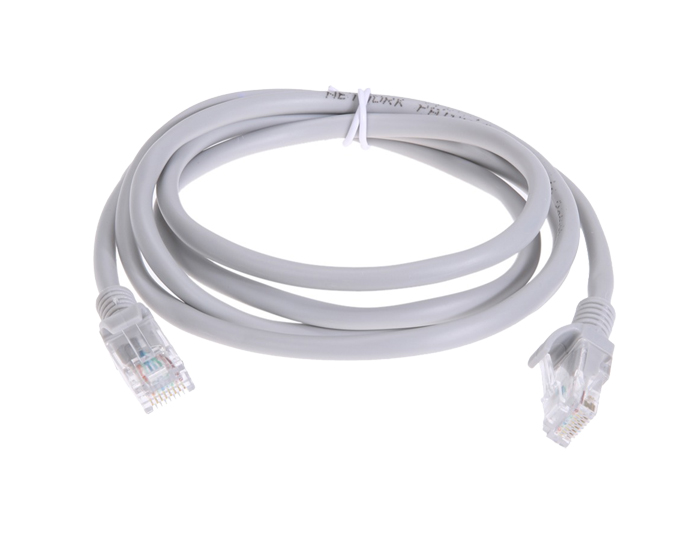

Cat5e Unshielded Ethernet Network Patch Cable,5M,Grey,1000Base-T TSF-305A
