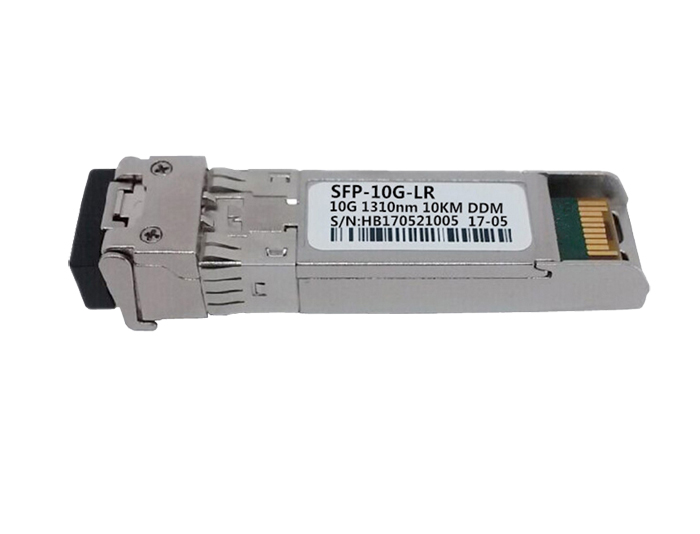

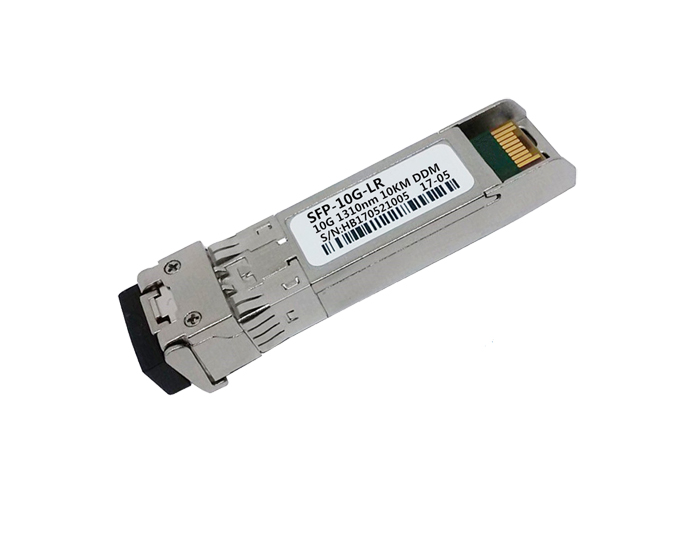

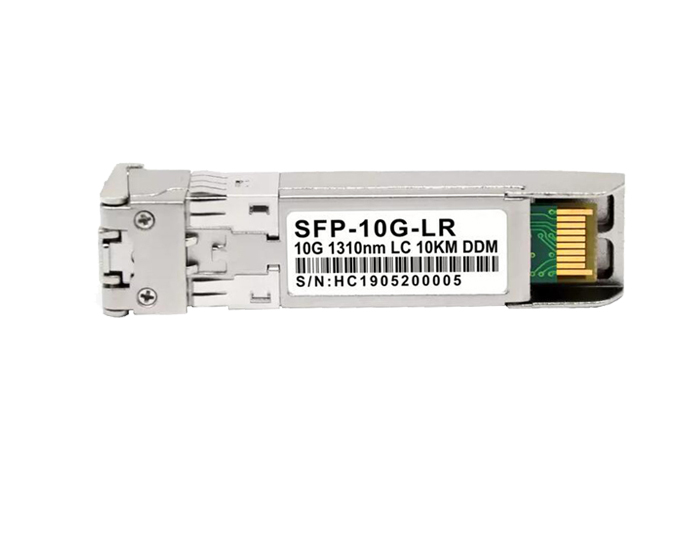

Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km LC SMF Transceiver

Publisher: MJADOM

Author: Andy

MJADOM offers TQB-SFP+-10G-LR Fiber Transceiver also called Fiber Optic Transceiver or SFP-10G or SFP 10 GIG or 10GB SFP is specifically designed for the high performance integrated duplex data transmission over single-mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).


Description:

MJADOM offers TQB-SFP+-10G-LR Fiber Transceiver also called Fiber Optic Transceiver or SFP-10G or SFP 10 GIG or 10GB SFP is specifically designed for the high performance integrated duplex data transmission over single-mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR/LW base IEEE 802.3ae and 10G Fibre Channel.


MJADOM offers a full range of fiber optic transceiver include Cisco SFP-10G-LR/ SFP-10G-LRM / SFP-10G-SR, Buy High-Performace Original Cisco fiber transceiver from reliable fiber optic supplier-MJADOM.COM


Features:

Hot-pluggable SFP+ footprint

Operating data rate up to 10.3Gbps.

1310nm DFB Transmitter.

Distance up to 10km.

Single 3. 3V Power supply and TTL Logic Interface.

Duplex LC Connector Interface, Hot Pluggable.

Compliant with MSA SFP+ Specification SFF-8431.

Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard.

Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard.

Compliant with IEEE 802.3ae 10GBASE-LR/LW.

Operating Case Temperature Standard:-10°C~+70°C.


Production Specification:

Item ModelSFP-10G-LRNameSpecification
Form FactorSFP+Max Data Rate10.3125Gbps
Wavelength1310nmMax Cable Distance10km
ConnectorLC duplexOptical ComponentsDFP 1310nm
MediaSMFDOM SupportYes
TX Power-8.2~-0.5dBmReceiver Sensitivity< -14.4dBm
Commercial Temperature Range0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI


Applications:

10GBASE-SR at 9.953Gbps Fibre Channel.

10GBASE-SW at 10.3125Gbps, 10000Base-SR Ethernet.

Fiber Channel, Other Optical Links, ATM, SONET/SDH, Ethernet, Switches, Routers, Hubs.


Configuration

Order Information:

Item No.DescriptionData RateWavelengthDistanceConnector Type

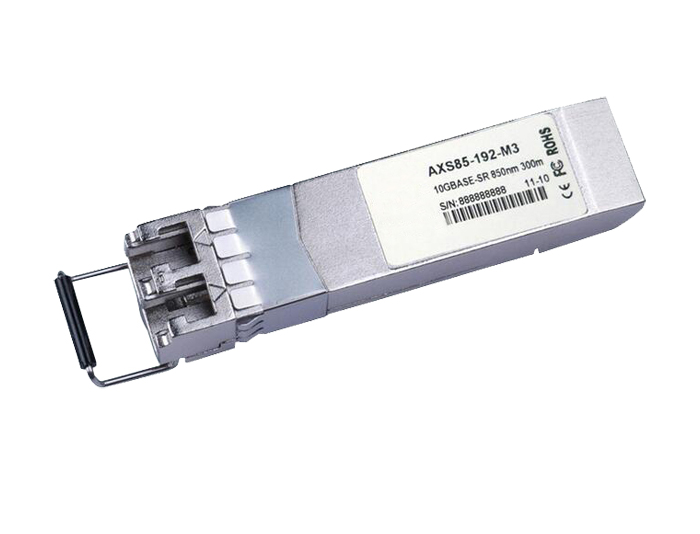

 TQB-SFP+-SR10GBASE-SR SFP+ 850nm 300m Fiber Optic Transceiver 10G 850nm 300m  LC
 TQB-SFP+-LR10GBASE-LR SFP+ 1310nm 10km Fiber Optic Transceiver 10G 1310nm 10km LC
 TQB-SFP+-LRM10GBASE-LRM SFP+ 1310nm 220m Fiber Optic Transceiver 10G 1310nm 220m LC
 TQB-SFP+-ER10GBASE-ER SFP+ 1550nm 40km Fiber Optic Transceiver 10G 1550nm 40km LC
 TQB-SFP+-ZR10GBASE-ZR SFP+ 1550nm 80km Fiber Optic Transceiver 10G 1550nm 80km LC
