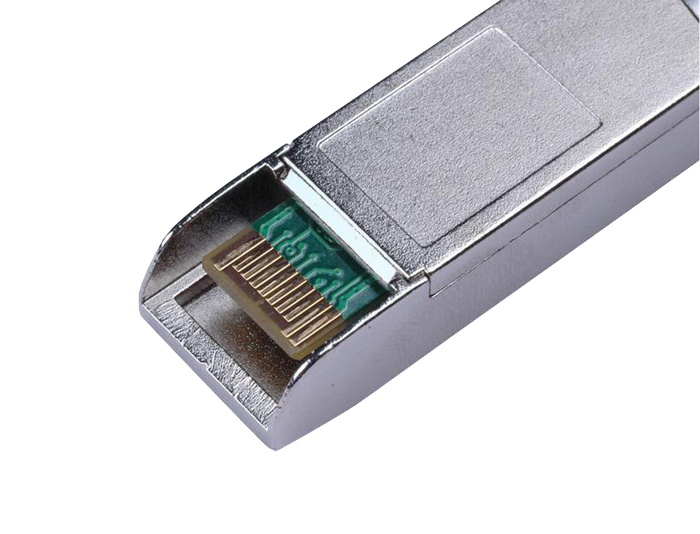

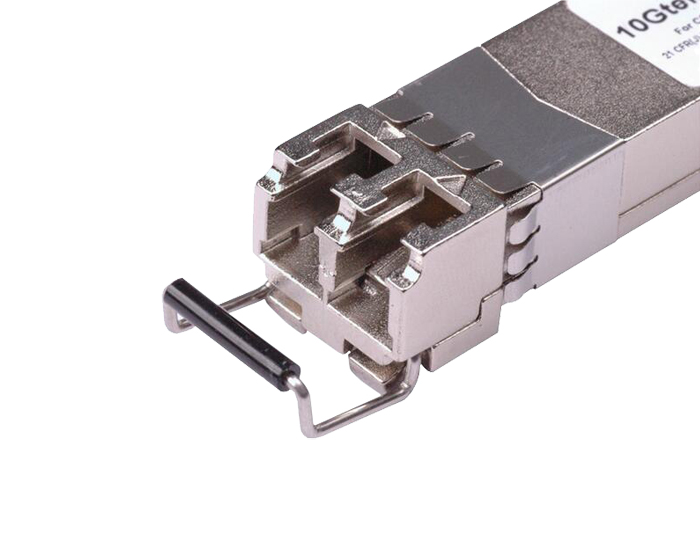

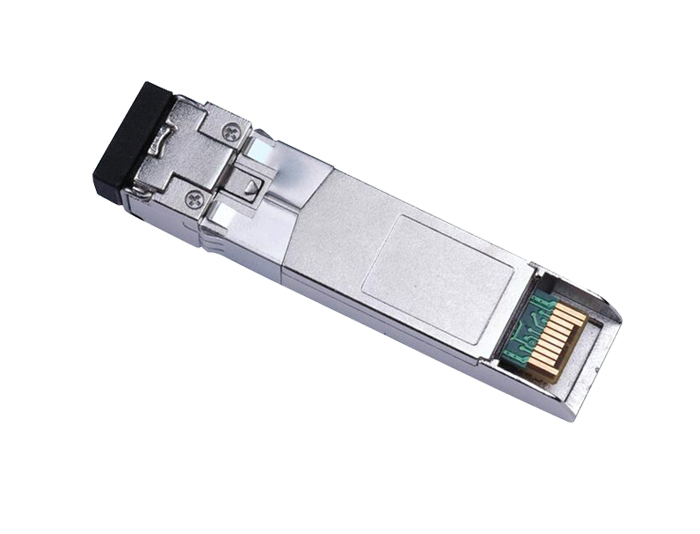

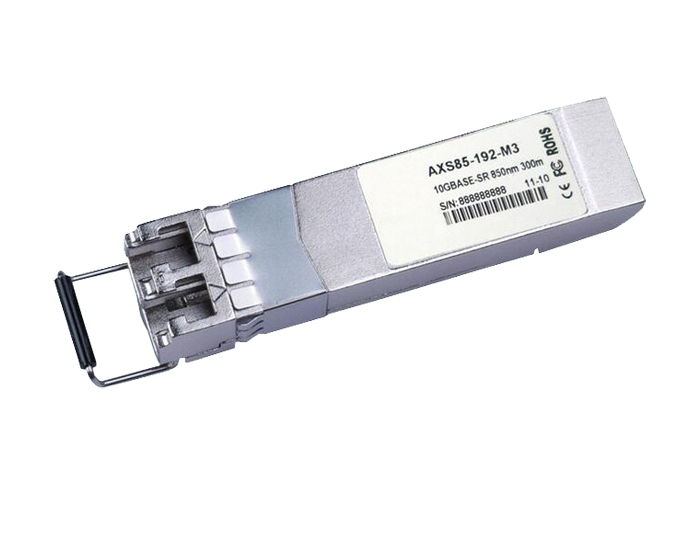

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DDM)

Publisher: MJADOM

Author: Andy

MJADOM offers Cisco SFP-10G-SR is multi-mode 10G fiber transceiver also called Cisco SFP-10G-SR or SFP 10GB or SFP Cisco 10G or SFP 10G LR S Cisco, It is a high-performance and cost-effective SFP+ transceiver module supporting a data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode optical fiber.


MJADOM offers a full range of fiber optic transceiver include Cisco SFP-10G-LR/ SFP-10G-LRM / SFP-10G-SR, Buy High-Performace Original Cisco fiber transceiver from reliable fiber optic supplier-MJADOM.COM


Description:

MJADOM offers Cisco SFP-10G-SR is multi-mode 10G fiber transceiver also called Cisco SFP-10G-SR or SFP 10GB or SFP Cisco 10G or SFP 10G LR S Cisco, It is a high-performance and cost-effective SFP+ transceiver module supporting a data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode optical fiber. This transceiver is programmed to be compatible with a wide range of Cisco network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs), and Media Converters. This SFP-10G-SR compatible transceiver is manufactured with high-quality components and tested strictly to meet or exceed original manufacturer specifications and optimized for data center network applications.


Features:

10Gb/s optical interface compliant to IEEE 802.3ae 10GBASE-SR.

Electrical interface compliant to SFF-8431.

Hot Pluggable.

850nm VCSEL transmitter, PIN photo-detector.

Distance up to 300 meters on 10G OM3 fiber.

Operating case temperature: 0 to 70℃.

Low power consumption.

Built-in digital diagnostic functions.

All-metal housing for superior EMI performance.

Advanced firmware allows customer system encryption information to be stored in the transceiver.

A cost-effective SFP+ solution enables higher port densities and greater bandwidth.


Production Specification:

Item ModelSFP-10G-SRNameSpecification
Form FactorSFP+Max Data Rate10.3125Gbps
Wavelength850nmMax Cable Distance300m over OM3 MMF
ConnectorLC duplexOptical ComponentsVCSEL 850nm
MediaMMFDOM SupportYes
TX Power-7.3~-1dBmReceiver Sensitivity< -11.1dBm
Commercial Temperature Range0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI


Applications

10GBASE-SR at 10.3125Gbps.

10GBASE-SW at 9.953Gbps.

10G Fiber Channel.

10GbE Data Center Switches and Routers.


Configuration

Order Information:

Item No.DescriptionData RateWavelengthDistanceConnector Type
 TQB-SFP+-SR10GBASE-SR SFP+ 850nm 300m Fiber Optic Transceiver 10G 850nm 300m  LC
 TQB-SFP+-LR10GBASE-LR SFP+ 1310nm 10km Fiber Optic Transceiver 10G 1310nm 10km LC
 TQB-SFP+-LRM10GBASE-LRM SFP+ 1310nm 220m Fiber Optic Transceiver 10G 1310nm 220m LC
 TQB-SFP+-ER10GBASE-ER SFP+ 1550nm 40km Fiber Optic Transceiver 10G 1550nm 40km LC
 TQB-SFP+-ZR10GBASE-ZR SFP+ 1550nm 80km Fiber Optic Transceiver 10G 1550nm 80km LC
