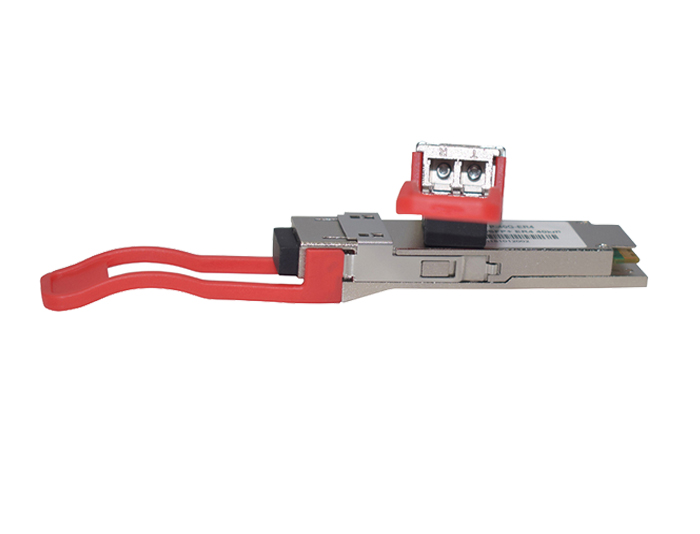

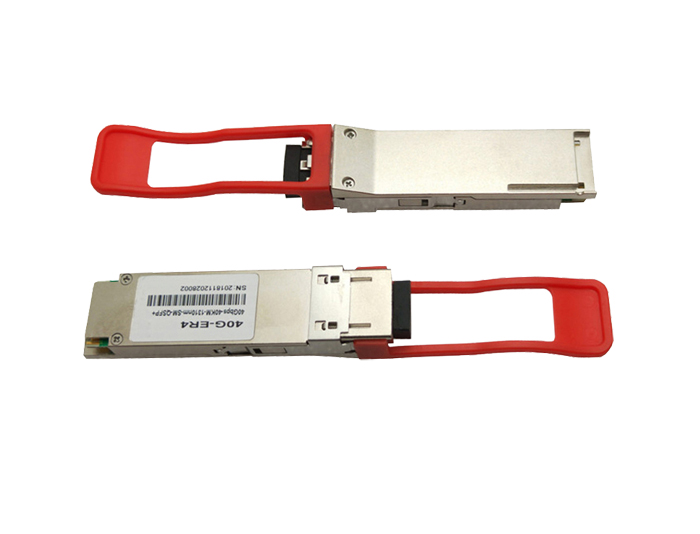

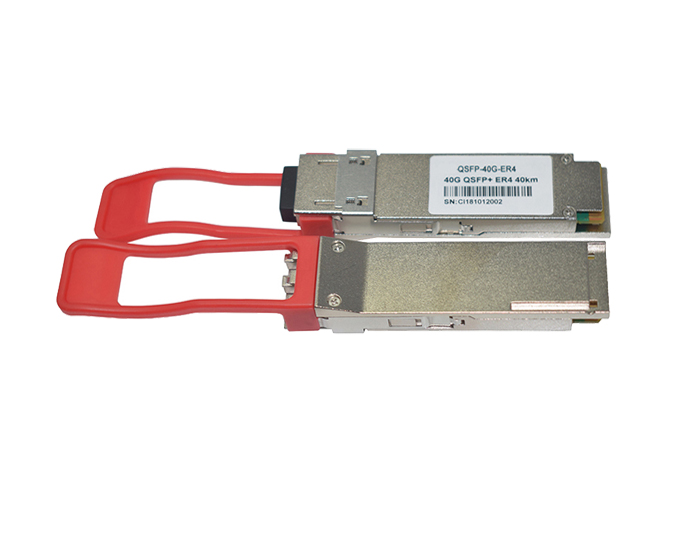

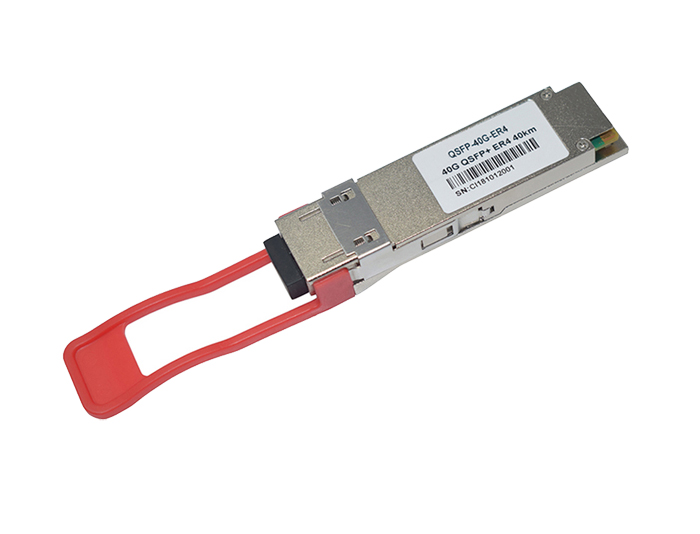

Cisco QSFP-40GE-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km DOM LC SMF Optical Transceiver Module

Publisher: MJADOM

Author: Andy

The Fiber Transceiver TQB-QSFP-40GE-ER4 also called Fiber Optic Transceiver or QSFP ER or QSFP or QSFP 40G or QSFP Transceiver, which is a transceiver module designed for 40km optical communication applications. It is fully compliant with the QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4, and OTU3 standard.


MJADOM offers a full range of fiber optic transceiver include Cisco QSFQ-40G-ER4/ QSFQ-40G-LR4 / QSFP-40G-SR4, Buy High-Performace Original Cisco fiber transceiver from reliable fiber optic supplier-MJADOM.COM

Description:

The TQB-QSFP-40GE-ER4 also called Fiber Optic Transceiver or QSFP 40G or QSFP Transceiver or optical transceiver sfp or Fiber Optic Transceiver Module, which is a transceiver module designed for 40km optical communication applications. It is fully compliant with the QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4, and OTU3 standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.


Features:

 4 CWDM lanes MUX/DEMUX design.

Up to 11.2Gbps per channel bandwidth.

Aggregate bandwidth of > 40Gbps.

Duplex LC connector.

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard.

QSFP MSA compliant.

APD photo-detector.

Up to 40 km transmission.

Compliant with QDR/DDR Infiniband data rate.

Single +3.3V power supply operating.

Built-in digital diagnostic functions.

Temperature range 0°C to 70°C.

RoHS Compliant Part.


Production Specification:

Item ModelQSFP-40G-ER4NameSpecification
Form FactorQSFP+Max Data Rate44.6Gbps
Wavelength1310nmMax Cable Distance40km@OM4 SMF
ConnectorLC DuplexMediaSMF
Transmitter Type      DFB CWDMReceiver TypePIN
DDM/DOMSupportedCommercial Temperature Range0 to 70°C
TX Power-2.7~4.5dBmReceiver Sensitivity<-21.2dBm
Power Consumption3.5WExtinction Ratio5.5dB
Modulation FormatNRZCDRNone
Transmit and Dispersion Penalty2.6dBPower budget18.5dB
Packaging TechnologyBOX PackagingFEC FunctionSupported
 ProtocolsOTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant Application40GBASE-ER4 40G Ethernet, OTU3, OTU3e1, OTU3e2, Data Center


Applications:

Rack to rack.

Data centers Switches and Routers.

Metro networks.

Switches and Routers.

40G BASE-ER4 Ethernet Links.

Configuration

Order Information:

Item No.DescriptionData RateWavelengthDistanceConnector Type
 TQB-QSFP+-40GE-SR440GBASE-SR4 SFP+ 850nm 150m Fiber Optic Transceiver 40G 850nm 300m  MTP/MPO
 TQB-QSFP+-40GE-LR440GBASE-LR4 SFP+ 1310nm 10km Fiber Optic Transceiver 40G 1310nm 10km LC duplex
 TQB-QSFP+-40GE-ER440GBASE-ER4 SFP+ 1310nm 40km Fiber Optic Transceiver 40G 1310nm 40km LC duplex



Related Products

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DDM)
Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DDM)

Cisco SFP-10G-SR is multi-mode 10G fiber transceiver, It is a high-performance and cost-effective SFP+ transceiver module supporting a data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode optical fiber.

1000BASE-BX BiDi SFP Tx:1550nm/Rx:1310nm 10km DOM LC SMF Transceiver Module
1000BASE-BX BiDi SFP Tx:1550nm/Rx:1310nm 10km DOM LC SMF Transceiver Module

​The SFP-BIDI transceivers are high performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps, SMF, Tx:1550nm/Rx:1310nm, 10KM, LC, DDM.

Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km LC SMF Transceiver
Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km LC SMF Transceiver

SFP+-10G-LR Fiber Transceiver also called SFP-10G Transceiver, which is specifically designed for the high performance integrated duplex data transmission over single-mode optical fiber.

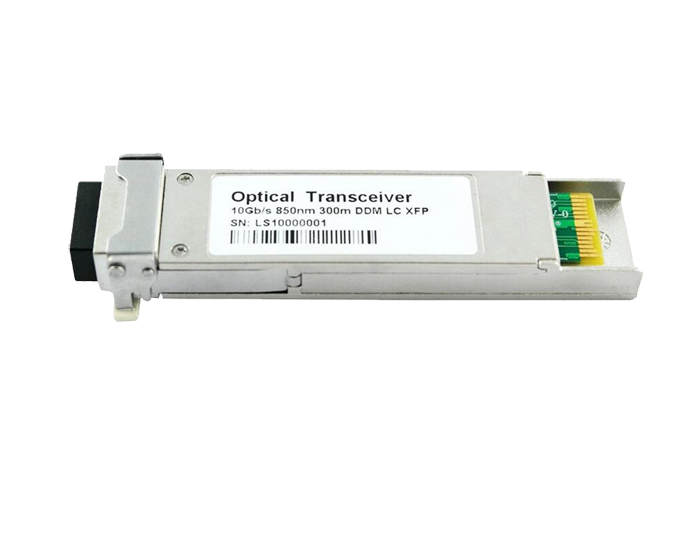

Cisco XFP-10G-SR Compatible 10GBASE-SR XFP 850nm 300m DOM LC MMF Transceiver Module
