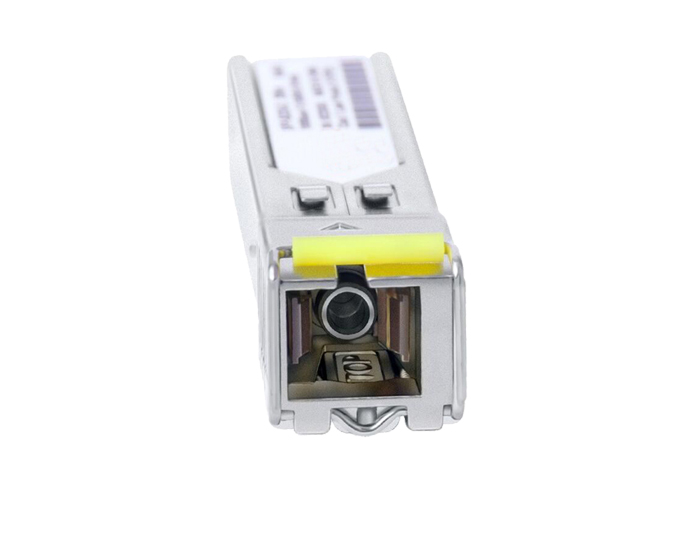

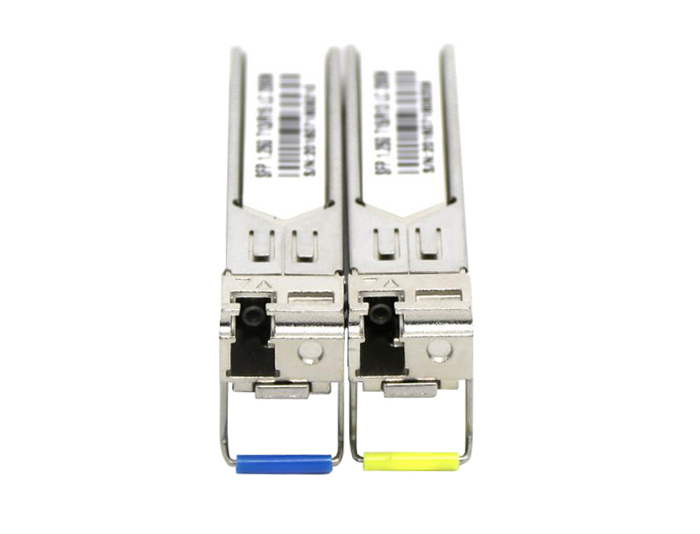

1000BASE-BX-U BiDi SFP Tx:1310nm/Rx:1490nm 10km DOM LC SMF Transceiver Module

Publisher: MJADOM

Author: Andy

The SFP-BIDI Fiber Transceivers also called SFP Module or BiDi SFP or SFP Module Fiber,  It's high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps with SMF. The 1000BASE-BX SFP optics provide 10km high-speed data links using a single strand of fiber, which can upgrade transmission capacity very conveniently without installing new fibers.

Description:

The SFP-BIDI Fiber Transceivers also called SFP Module or BiDi SFP or SFP Module Fiber,  It's high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps with SMF. The transceiver consists of three sections: a FP laser transmitter, aPIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

The 1000BASE-BX SFP optics provide 10km high-speed data links using a single strand of fiber, which can upgrade transmission capacity very conveniently without installing new fibers. The SFP transceiver module is a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.


MJADOM offers a full range of fiber optic transceivers include Cisco 1000BASE BIDI SFP, wavelength 1310nm/1490nm/1550nm,100% Cisco Compatible, 10km~120km, LC, DDM module transceiver. Buy High-Performace Original Cisco fiber transceiver from reliable fiber optic supplier-MJADOM.COM



Features:

Single Mode Bi-directional Transmission.

Up to 1.25Gbps Data Links.

Up to 10km on single 9/125µm SMF.

1310nm FP laser transmitter/1490nm InGaAs PIN receiver.

1490nm DFB laser and PIN photodetector.

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle.

Compatible with SONET OC-24-LR-1.

Compliant with IEEE 802.3z.

Digital Diagnostic Monitoring: Internal or External Calibration.

Build-in WDM.

Simplex LC connector.

+3.3V single power supply.

ROHS compliant and Lead-Free.

Operating case temperature:Standard : 0 to +70°C,Extended : -40 to +85°C.



Production Specification:

Item Model1.25G-BIDI SFPNameSpecification
Form FactorSFPMax Data Rate1000Mbps
Wavelength1310nm-TX/1490nm-RXMax Cable Distance10km
ConnectorLC SimplexOptical ComponentsFP BiDi
MediaSMFDOM SupportYes
TX Power-9~3dBmReceiver Sensitivity< -23dBm
Commercial Temperature Range0 to 70°CProtocolsFast Ethernet, Gigabit Fibre Channel, MSA Compliant


Applications:

Gigabit Ethernet.

Fiber Channel.

Switch to Switch interface.

Switched backplane applications.

Router/Server interface.

Other optical transmission systems.


Configuration

Order Information:

Item No.DescriptionData RateWavelengthDistanceConnector Type
 TQB-BIDI-SFP-B7P11000BASE BIDI SFP 1310nm-TX/1490nm-RX 10km DOC LC SMF Fiber Optic Transceiver 1000Mbps 1310nm-TX/1490nm-RX 10km  LC Simplex
 TQB-BIDI-SFP-B7P21000BASE BIDI SFP 1490nm-TX/1310nm-RX 10km DOC LC SMF Fiber Optic Transceiver 1000Mbps 1490nm-TX/1310nm-RX 10km LC Simplex
 TQB-BIDI-SFP-B7P31000BASE BIDI SFP 1310nm-TX/1550nm-RX 10km DOC LC SMF Fiber Optic Transceiver 1000Mbps 1310nm-TX/1550nm-RX 10km LC Simplex
 TQB-BIDI-SFP-B7P41000BASE BIDI SFP 1550nm-TX/1310nm-RX 10km DOC LC SMF Fiber Optic Transceiver 1000Mbps 1550nm-TX/1310nm-RX 10km LC Simplex
