16 Core Fiber Access Terminal Box F2E-601-16G

Publisher: MJADOM

Author: Andy

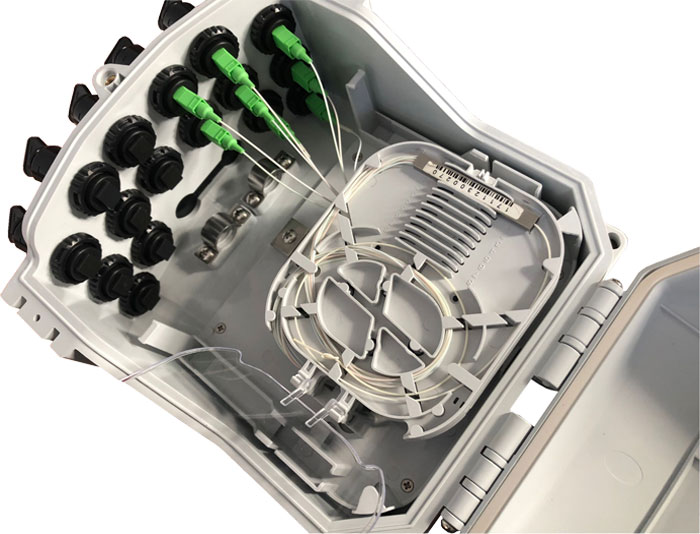

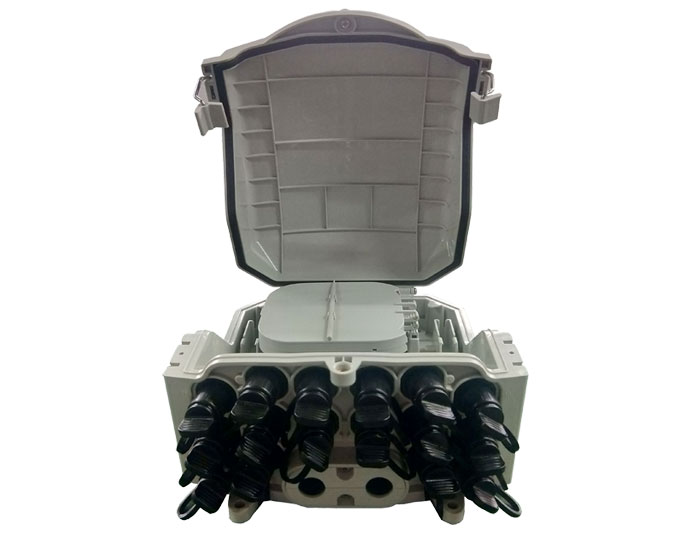

RGP-F2E-601-16G Fiber Access Terminal Box fiber access terminal is able to hold up to 16 16 pcs Huawei pre-installed reinforced water-proof adapters for SC. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system.

RGP-F2E-601-16G Fiber Access Terminal Box fiber access terminal is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box, and meanwhile it provides solid protection and management for the FTTx network building.

Fully enclosed structure.

Material: PC+ABS, waterproof, dustproof, anti-aging design, IP-65 protection level for outdoor.

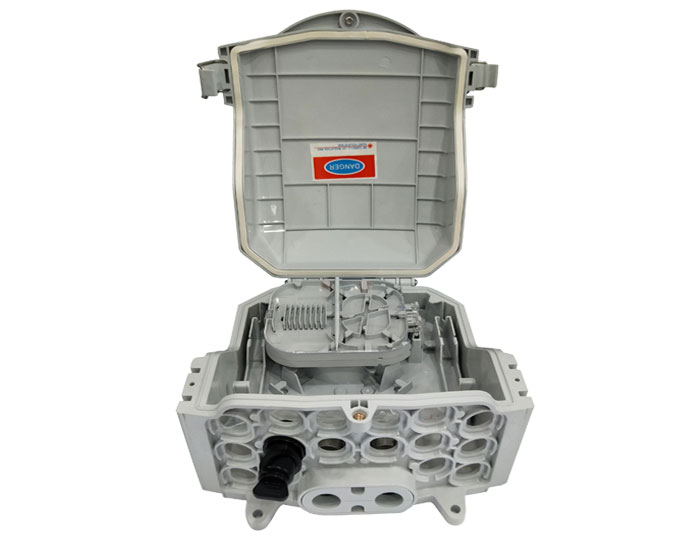

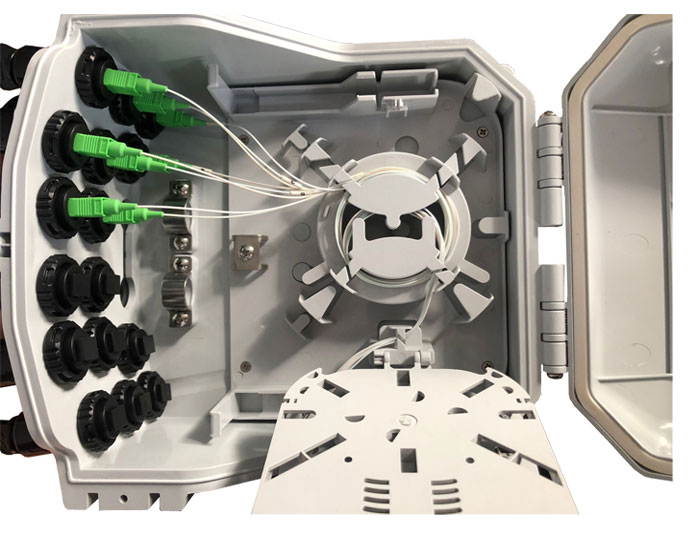

Integrated with 2 x splice trays,splice tray can be flipped up, and maximum 32F splice capacity.

Fiber bend radius control more than 40mm.

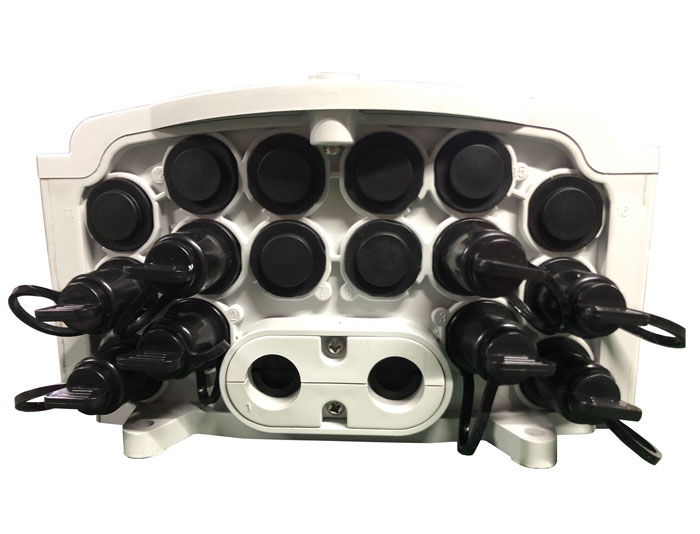

1 x mid-span cable entrance for uncut cable with maximum diameter 12mm .



1x8 PLC splitter can be installed in each splice tray.

16pcs of Huawei pre-installed reinforced water-proof adapters for SC.

Cable, pigtails, and patch cords are running through their own paths without disturbing each other, Easy for maintenance and expansion.


Specification:

Environmental requirement

Working temperature:-40℃~+85℃.

Relative humidity:≤85%(+30℃).

Atmospheric pressure:70KPa~106Kpa.


Main technical:

Insertion loss:≤0.15dB.

UPC return loss:≥50dB.

APC return loss:≥60dB.



Wall mounted installation

Pole mounted installation

Aerial hanging installation

Suitabe for pre-connectorized drop cable with reinforced connector


Configuration

Model No.Spliced fiber storage capacityHeight x diameterCable portsMax. diameter of cable(mm)Applicable Cable DiameterPLC Splitter
RGP-F2E-601-16G

Splice Trays

2pcs x16 Splices

227mmx205mm x117mm

1 Uncut Port +16 pcs

of FTTH Drop Cable.

1 uncut of port can support

the maximum diameter Φ12 mm

16 Round for pre-connectorized with 2.0x3.0mm or

2.0x5.0mm FTTH Drop Cable

2 pcs of 1x8 PLC Splitter
