LC to LC SC Type Fiber Optic Adapter OFA-104D

Publisher: MJADOM

Author: Andy

LC to LC Fiber Optic Adapter also called Fiber Optic Coupler. MJADOM offers Fiber Optic Adapters, Fiber Optic Couplers, Single Mode Fiber, Multimode OM3 & OM4, SC/APC & SC/UPC, Simplex & Duplex & Quad Fiber Optic Adapters Types.

LC to LC Fiber Optic Adapter also called Fiber Optic Coupler. MJADOM offers Fiber Optic Adapters, Fiber Optic Couplers, Single Mode Fiber, Multimode OM3 & OM4, SC/APC & SC/UPC, Simplex & Duplex & Quad Fiber Optic Adapters Types.



By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability, and reproducibility. And each fiber optic adapter is functionally tested before shipping. With the audible click locking mechanism and pull-proof design, this connector provides a secure interconnect.


Features:

Double the capacity, perfect space-saving solution.

Small size, large capacity.

Bayonet structure, convenient for installation.

High return loss, Low insertion loss.

Three types of fiber stub: PC/ UPC/ APC.

Simples, Duplex, Quadruple.

Push-and-pull structure, convenient for operation.

Split zirconia (ceramic) ferrule is adopted.

Used to mate two connectors together.

Usually mounted in a distribution panel or wall box.

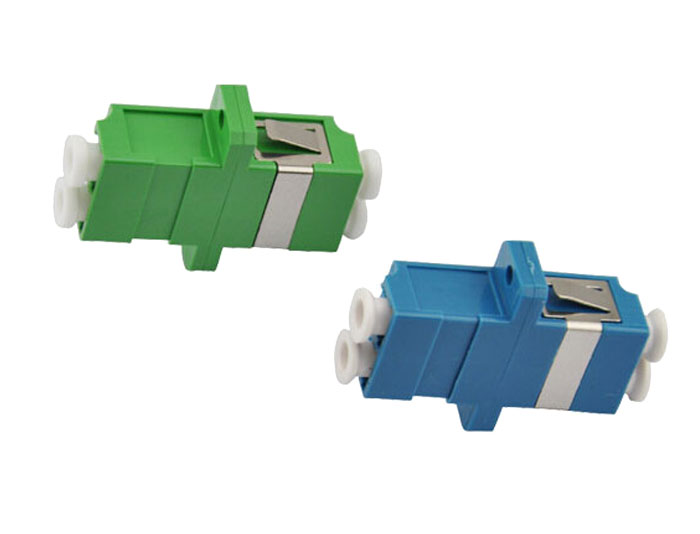

The adapters are color-coded allowing easy identification of the adapter type.

Available with simplex & duplex patch cords and pigtails.


Application:

1. FTTX + LAN (Local and wide area networks).

2. Optical fiber CATV (Community access television).

3. Local Area Networks.

4. Testing Equipment.

5. Fiber Optic Telecommunication.


Configuration

Specification:

ParameterUnitFC,SC,LC,ST,SC-ST,FC-ST, FC-SC,FC-LC,FC-MUMTRJE2000
SMMMSMMMSM
PCUPCAPCPCPCUPCPCPCAPC
Insertion Loss (Typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.2≤0.3
Return LossdB≥45≥50≥60≥30≥45≥50≥35≥55≥75
ExchangeabilitydB≤0.2≤0.2≤0.2
RepeatabilitydB≤0.2≤0.2≤0.2
DurabilityTimes>1000>1000>1000
Operating Temperature°C-45 ~ +75-45 ~ +75-45 ~ +75
Storage Temperature°C-45 ~ +85-45 ~ +85-45 ~ +85


Complied Standards:

Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.
